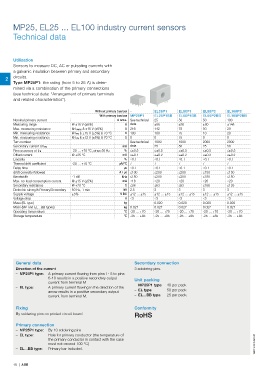

MP25, EL25 ... EL100 industry current sensors
Technical data

Utilisation
Sensors to measure DC, AC or pulsating currents with
a galvanic insulation between primary and secondary
2 circuits.
Type MP25P1: the rating (from 5 to 25 A) is deter-
mined via a combination of the primary connections
(see technical data: "Arrangement of primary terminals
and related characteristics").

Without primary bus bar – EL25P1 EL50P1 EL55P2 EL100P2
With primary bus bar MP25P1 EL25P1BB EL50P1BB EL55P2BB EL100P2BB
Nominal primary current A r.m.s. See technical 25 50 50 100
Measuring range @ ±15 V (±5%) A data ±55 ±80 ±80 ±145
Max. measuring resistance @ I PMAX & ±15 V (±5%) Ω 216 142 78 93 29
Min. measuring resistance @ I PN & ±15 V (±5%) & 70 °C Ω 100 100 75 10 20
Min. measuring resistance @ I PN & ±12 V (±5%) & 70 °C Ω 0 0 15 0 0
Turn number See technical 1000 1000 2000 2000
Secondary current at I PN mA data 25 50 25 50
Rms accuracy at I PN -20 … +70 °C, sinus 50 Hz % ≤±0.5 ≤±0.5 ≤±0.5 ≤±0.5 ≤±0.5
Offset current @ +25 °C mA ≤±0.1 ≤±0.2 ≤±0.2 ≤±0.2 ≤±0.2
Linearity % ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1
Thermal drift coefficient -20 … +70 °C μA/°C 7 7 7 7 7
Delay time μs ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1
di/dt correctly followed A / μs ≤100 ≤200 ≤200 ≤150 ≤150
Bandwidth -1 dB kHz ≤150 ≤200 ≤200 ≤150 ≤150
Max. no-load consumption current @ ±15 V (±5%) mA ≤18 ≤20 ≤20 ≤20 ≤20
Secondary resistance @ +70 °C Ω ≤96 ≤63 ≤63 ≤188 ≤126
Dielectric strength Primary/Secondary 50 Hz, 1 min kV 2.5 3 3 3 3
Supply voltage ±5% V DC ±12 … ±15 ±12 … ±15 ±12 … ±15 ±12 … ±15 ±12 … ±15
Voltage drop V ≤3 ≤3 ≤3 ≤3 ≤3
Mass (EL type) kg – 0.020 0.020 0.020 0.020
Mass (MP and EL…BB types) kg 0.027 0.027 0.027 0.027 0.027
Operating temperature °C -20 … +70 -20 … +70 -20 … +70 -20 … +70 -20 … +70
Storage temperature °C -25 … +85 -25 … +85 -25 … +85 -25 … +85 -25 … +85

General data Secondary connection
Direction of the current 3 soldering pins.
– MP25P1 type: A primary current flowing from pins 1- 5 to pins
6-10 results in a positive secondary output Unit packing
current from terminal M
– MP25P1 type: 40 per pack
– EL type: A primary current flowing in the direction of the
arrow results in a positive secondary output – EL type: 50 per pack
current from terminal M. – EL…BB type: 25 per pack.

Fixing Conformity
By soldering pins on printed circuit board. RoHS

Primary connection
– MP25P1 type: By 10 soldering pins
– EL type: Hole for primary conductor (the temperature of
the primary conductor in contact with the case
must not exceed 100 °C) 1SBC140004S0201
– EL…BB type: Primary bar included.
