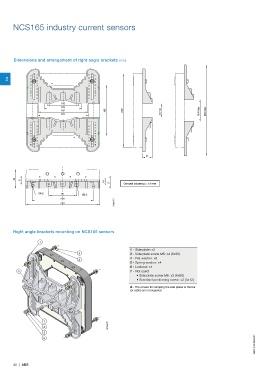

Page 42 - Current & voltage sensors catalog

NCS165 industry current sensors

Dimensions and arrangement of right angle brackets (mm)

2

102
122
165 240
162 8 mini 154 Maxi 380 Maxi
165

31

62 8
16 21 General tolerance : ±1 mm

Ø6,5 90 Ø6,3
200
G0234DF
240

Right angle brackets mounting on NCS165 sensors

1
1 - Side plate: x2
3 3 - Side plate screw M6: x4 (6x30)
4 - Flat washer: x8
4
5 - Spring washer: x4
6 - Locknut: x4
A 7 - Not used:
• Side plate screw M6: x2 (6x50)
• Standard positioning screw: x2 (3x12)
A - The screws for clamping the side plates to the bar
(or cable) are not supplied

1
G0245DF
4
5
1SBC140025S0201
6

40 | ABB
