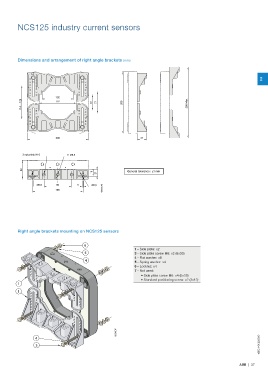

NCS125 industry current sensors
Dimensions and arrangement of right angle brackets (mm)
2
102
114 ... 125 122 57 77 200 286 Max
200 31
3 nut prints H10 3 Ø6,3
62
16 21 General tolerance : ±1 mm
G0232DG
Ø6,5 90 5 Ø6,5
165
Right angle brackets mounting on NCS125 sensors
6
1 - Side plate: x2
5 3 - Side plate screw M6: x2 (6x30)
4 - Flat washer: x8
4
5 - Spring washer: x4
6 - Locknut: x4
7 - Not used:
• Side plate screw M6: x4 (6x30)
• Standard positioning screw: x2 (3x12)
1
1
G0243DF
1SBC140022S0201
4
3
