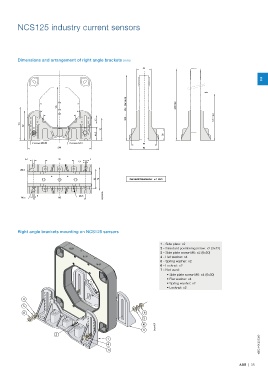

NCS125 industry current sensors
Dimensions and arrangement of right angle brackets (mm)
46
2
axis
(standard)
125
125 245 Maxi
122 204
102
200 ... 145 Maxi
10
104
92
70
41,5 36
2 screws M6x50 2 screws 3x12 80
200 92
6,5 90 5
2,5
Ø6,5
62 72 General tolerance : ±1 mm
5 Ø6,3 G0230DG
Ø6,5 165
Right angle brackets mounting on NCS125 sensors
1 - Side plate: x2
2 - Standard positioning screw: x2 (3x12)
3 - Side plate screw M6: x2 (6x50)
4 - Flat washer: x4
5 - Spring washer: x2
6 - Locknut: x2
7 - Not used:
• Side plate screw M6: x4 (6x30)
• Flat washer: x4
2 • Spring washer: x2
• Locknut: x2
4
5
6 6
5
4
1 G0241DF
2
1
4 1SBC140020S0201
3
