P. 41

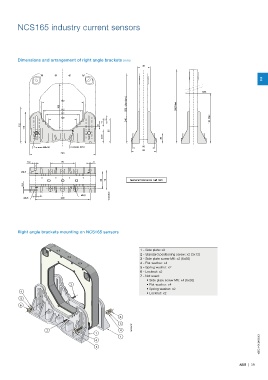

NCS165 industry current sensors
Dimensions and arrangement of right angle brackets (mm)
46
2
axis
(standard)
152
165 300 Maxi
142 252
122
102 240 ... 180 Maxi
10
10
132 10
113
90
49,5 36
2 screws M6x50 2 screws 3x12 80
92
240
6,5 90 5
Ø6,5
62 72 General tolerance : ±1 mm
6,5
G0233DG
5 Ø6,3
Ø6,5 200
Right angle brackets mounting on NCS165 sensors
1 - Side plate: x2
2 - Standard positioning screw: x2 (3x12)
3 - Side plate screw M6: x2 (6x50)
4 - Flat washer: x4
5 - Spring washer: x2
6 - Locknut: x2
7 - Not used:
• Side plate screw M6: x4 (6x30)
2 • Flat washer: x4
• Spring washer: x2
4
• Locknut: x2
5
6
6
5
2 4 G0244DF
1
1SBC140024S0201
1
4
3
ABB | 39
