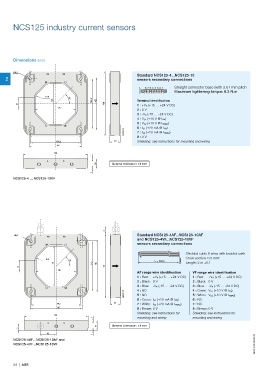

Page 36 - Current & voltage sensors catalog

NCS125 industry current sensors

Dimensions (mm)

Ø6,5
Standard NCS125-4...NCS125-10
2 sensors secondary connections
G0229DF 87 6 5 4 32 1 Straight connector base (with 3.81 mm pitch
Maximum tightening torque: 0.3 N.m
R18 45°
125 154,3 162 Terminal identification
37 198 1 : +V A (+15 … +24 V DC)
125
2 : 0 V
3 : -V A (-15 … -24 V DC)
4 : V S1 (±10 V @ I PN)
5 : V S2 (±10 V @ I PMAX)
6 : I S1 (±20 mA @ I PN)
G0236DF 7 : I S2 (±20 mA @ I PMAX)
8 : 0 V
32 Shielding: see instructions for mounting and wiring
154,3
162
198
1
30 General tolerance : ±1 mm

1
NCS125-4 ... NCS125-10VF

24
Ø6,5 Standard NCS125-4AF...NCS125-10AF
and NCS125-4VF...NCS125-10VF
sensors secondary connections

Shielded cable 6 wires with braided earth
R18 45° L = 2000 G0228DF Cross section: 0.5 mm²
125 154,3 162 Length: 2 m ±0.1
37 198
125
AF range wire identification VF range wire identification
1 : Red: +V A (+15 … +24 V DC) 1 : Red: +V A (+15 … +24 V DC)
2 : Black: 0 V 2 : Black: 0 V
3 : Blue: -V A (-15 … -24 V DC) 3 : Blue: -V A (-15 … -24 V DC)
G0247DF 4 : NC: 4 : Green: V S1 (±10 V @ I PN)
5 : White: V S2 (±10 V @ I PMAX)
5 : NC:
6 : Green: I S1 (±20 mA @ I PN) 6 : NC:
154,3 32 7 : White: I S2 (±20 mA @ I PMAX) 7 : NC:
162
8 : Brown: 0 V 8 : Brown: 0 V
Shielding: see instructions for Shielding: see instructions for
198
1 mounting and wiring mounting and wiring
30 General tolerance : ±1 mm
13
50 1
1SBC140019S0201
NCS125-4AF…NCS125-10AF and
NCS125-4VF…NCS125-10VF

34 | ABB
