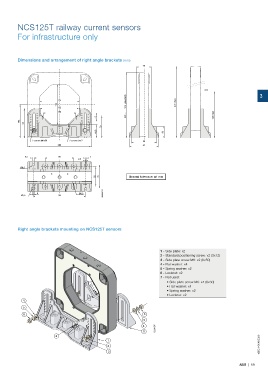

Page 71 - Current & voltage sensors catalog

NCS125T railway current sensors
For infrastructure only

Dimensions and arrangement of right angle brackets (mm)
46

axis
(standard) 3
125
125 245 Maxi
122 204
102
10 200 ... 145 Maxi
104
92
70
41,5 36

2 screws M6x50 2 screws 3x12 80
200 92

6,5 90 5
2,5
Ø6,5
62 72 General tolerance: ±1 mm

5 Ø6,3 G0230DG
Ø6,5 165

Right angle brackets mounting on NCS125T sensors

1 - Side plate: x2
2 - Standard positioning screw: x2 (3x12)
3 - Side plate screw M6: x2 (6x50)
4 - Flat washer: x4
5 - Spring washer: x2
6 - Locknut: x2
7 - Not used:
• Side plate screw M6: x4 (6x30)
2
• Flat washer: x4
• Spring washer: x2
• Locknut: x2
4
5
6 6
5
4 G0241DF
1
2
1
4 1SBC140049S0201
3
