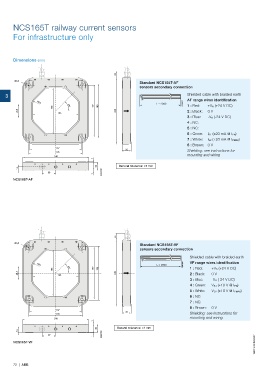

Page 74 - Current & voltage sensors catalog

NCS165T railway current sensors

For infrastructure only

Dimensions (mm)

24
Ø6,5
Standard NCS165T-AF
sensors secondary connection
3 Shielded cable with braided earth
AF range wires identification
R24
L = 2000 G0228DF
165 45° 187 195 1 : Red: +V A (+24 V DC)
48,5 165 240 2 : Black: 0 V
3 : Blue: -V A (-24 V DC)
4 : NC:
5 : NC:
6 : Green: I S1 (±20 mA @ I PN)
7 : White: I S2 (±20 mA @ I PMAX)
8 : Brown: 0 V
187
32 Shielding: see instructions for
195
mounting and wiring
240
1
30 General tolerance: ±1 mm
13
50 G0237DF
1
NCS165T-AF

24
Ø6,5
Standard NCS165T-VF
sensors secondary connection
Shielded cable with braided earth
L = 2000 G0228DF VF range wires identification
R24
165 45° 187 195 1 : Red: +V A (+24 V DC)
48,5 165 240 2 : Black: 0 V
3 : Blue: -V A (-24 V DC)
4 : Green: V S1 (±10 V @ I PN)
5 : White: V S2 (±10 V @ I PMAX)
6 : NC:
7 : NC:
8 : Brown: 0 V
187
32
195 Shielding: see instructions for
240 mounting and wiring
1
30 General tolerance: ±1 mm
13
1SBC140052S0201
50 G0237DF
1
NCS165T-VF
