P. 77

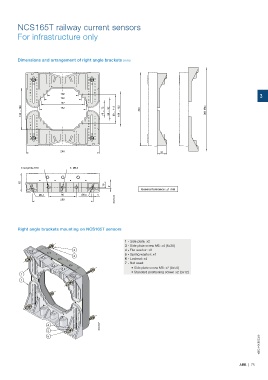

NCS165T railway current sensors
For infrastructure only
Dimensions and arrangement of right angle brackets (mm)
102 3
122
142
130 ... 165 152 49 ... 72 69 ... 92 89 ... 112 109 ... 132 240 360 Max
240 31
3 nut prints H10 3 Ø6,3
62
16 21
General tolerance: ±1 mm
Ø6,5 90 Ø6,5 5
G0235DG
200
Right angle brackets mounting on NCS165T sensors
1 - Side plate: x2
3 - Side plate screw M6: x4 (6x30)
3 4 - Flat washer: x8
5 - Spring washer: x4
4
6 - Locknut: x4
7 - Not used:
• Side plate screw M6: x2 (6x50)
• Standard positioning screw: x2 (3x12)
1
1
G0246DF
4
5
1SBC140055S0201
6
ABB | 75
