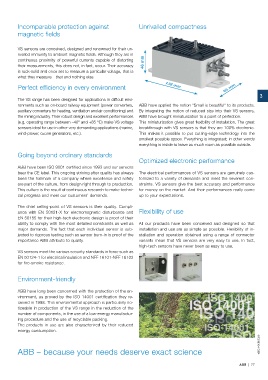

Page 79 - Current & voltage sensors catalog

Incomparable protection against Unrivalled compactness
magnetic fields

VS sensors are conceived, designed and renowned for their un-
rivalled immunity to ambient magnetic fields. Although they are in
continuous proximity of powerful currents capable of distorting 46 mm
their measurements, this does not, in fact, occur. Their accuracy
is rock-solid and once set to measure a particular voltage, that is
what they measure – that and nothing else.

Perfect efficiency in every environment 138 mm 63 mm
3
The VS range has been designed for applications in difficult envi-
ronments such as on-board railway equipment (power converters, ABB have applied the notion "Small is beautiful" to its products.
auxiliary converters for heating, ventilation and air conditioning) and By integrating the notion of reduced size into their VS sensors,
the mining industry. Their robust design and excellent performances ABB have brought miniaturization to a point of perfection.
(e.g. operating range between –40° and +85 °C) make VS voltage This miniaturization gives great flexibility of installation. The great
sensors ideal for use in other very demanding applications (marine, breakthrough with VS sensors is that they are 100% electronic.
wind-power, ozone generators, etc.). This makes it possible to put cutting-edge technology into the
smallest possible space. Everything is integrated; in other words
everything is inside to leave as much room as possible outside.
Going beyond ordinary standards
Optimized electronic performance
ABB have been ISO 9001 certified since 1993 and our sensors
bear the CE label. This ongoing striving after quality has always The electrical performances of VS sensors are genuinely cus-
been the hallmark of a company where excellence and safety tomized to a variety of demands and meet the severest con-
are part of the culture, from design right through to production. straints. VS sensors give the best accuracy and performance
This culture is the result of continuous research to make techni- for money on the market. And their performances really come
cal progress and meet our customers' demands. up to your expectations.

The chief selling-point of VS sensors is their quality. Compli-
ance with EN 50121-X for electromagnetic disturbance and Flexibility of use
EN 50155 for their high-tech electronic design is proof of their
ability to comply with the most detailed constraints as well as All our products have been conceived and designed so that
major demands. The fact that each individual sensor is sub- installation and use are as simple as possible. Flexibility of in-
jected to rigorous testing such as sensor burn-in is proof of the stallation and operation obtained using a range of connector
importance ABB attribute to quality. variants mean that VS sensors are very easy to use. In fact,
high-tech sensors have never been as easy to use.
VS sensors meet the various security standards in force such as
EN 50124-1 for electrical insulation and NFF 16101-NFF 16102
for fire-smoke resistance.

Environment-friendly

ABB have long been concerned with the protection of the en-
vironment, as proved by the ISO 14001 certification they re-
ceived in 1998. This environmental approach is particularly no-
ticeable in production of the VS range in the reduction of the
number of components, in the use of a low-energy manufactur-
ing procedure and the use of recyclable packing.
The products in use are also characterized by their reduced
energy consumption.
1SBC140056S0201

ABB – because your needs deserve exact science
