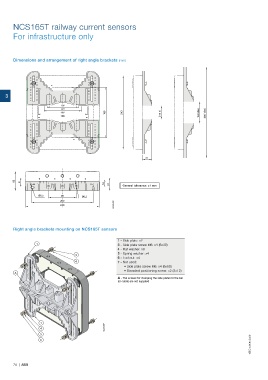

NCS165T railway current sensors
For infrastructure only

Dimensions and arrangement of right angle brackets (mm)

3

102
122
162 165 240 8 mini 154 Maxi 380 Maxi
165

31

62
8
16 21 General tolerance: ±1 mm
Ø6,5 90 Ø6,3
200
G0234DF
240

Right angle brackets mounting on NCS165T sensors

1 - Side plate: x2
1 3 - Side plate screw M6: x4 (6x30)
4 - Flat washer: x8
5 - Spring washer: x4
3
6 - Locknut: x4
4 7 - Not used:
• Side plate screw M6: x4 (6x50)
• Standard positioning screw: x2 (3x12)
A
A - The screws for clamping the side plates to the bar
(or cable) are not supplied

1
G0245DF
4
5
1SBC140054S0201
6

74 | ABB
