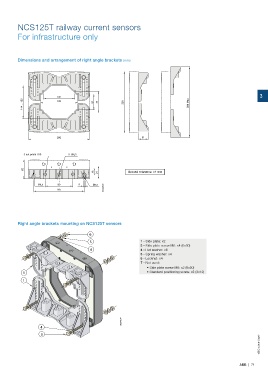

NCS125T railway current sensors
For infrastructure only
Dimensions and arrangement of right angle brackets (mm)
3
102
114 ... 125 122 57 77 200 286 Max
200 31
3 nut prints H10 3 Ø6,3
62
16 21 General tolerance: ±1 mm
Ø6,5 90 5 Ø6,5
165 G0232DG
Right angle brackets mounting on NCS125T sensors
6
5 1 - Side plate: x2
3 - Side plate screw M6: x4 (6x30)
4 4 - Flat washer: x8
5 - Spring washer: x4
6 - Locknut: x4
7 - Not used:
• Side plate screw M6: x2 (6x50)
1 • Standard positioning screw: x2 (3x12)
1
G0243DF
4
3
1SBC140051S0201
