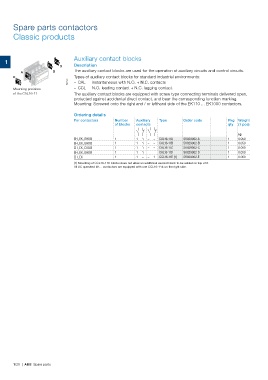

Page 24 - Spare-part-for-contactor

Spare parts contactors
Classic products

1 E2074D Auxiliary contact blocks

Mounting positions Description
of the CAL16-11 The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits.

Types of auxiliary contact blocks for standard industrial environments:
–– CAL instantaneous with N.O. + N.C. contacts
–– CCL N.O. leading contact + N.C. lagging contact.

The auxiliary contact blocks are equipped with screw type connecting terminals delivered open,
protected against accidental direct contact, and bear the corresponding function m­ arking.
Mounting: Screwed onto the right and / or lefthand side of the EK110 ... EK1000 contactors.

Ordering details Number Auxiliary Type Order code Pkg Weight
qty (1 pce)
For contactors

of blocks contacts

EH, EK, EHDB 1 1 1 – – CAL16-11A SK829002-A kg
EH, EK, EHDB 1 0.050
EH, EK, EHDB 1 1 1 – – CAL16-11B SK829002-B 1 0.050
EH, EK, EHDB 1 0.050
EH, EK 1 1 1 – – CAL16-11C SK829002-C 1 0.050
1 0.050
1 1 1 – – CAL16-11D SK829002-D

1 1 – – 1 CCL16-11E (1) SK829002-E

(1) Mounting of CCL16-11E blocks does not allow an additional second block to be added on top of it.
All DC operated EK... contactors are equipped with one CCL16-11E on the right side.

1/20 | ABB Spare parts
