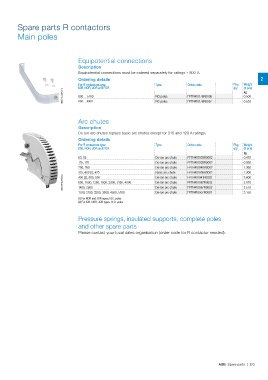

P. 27
Spare parts R contactors
Main poles
Equipotential connections
Description
Equipotential connections must be ordered separately for ratings ≥ 800 A.
Ordering details 2
For R contactors type Type Order code Pkg Weight
IOR, NOR, JOR and FOR qty (1 pce)
1SBC104032F0014
800 ... 5100 NO poles FPTN410176R0006 kg
800 ... 4000 NC poles FPTN410176R0007 0.500
0.530
Arc chutes
Description
De-ion arc chutes replace basic arc chutes except for 315 and 420 A ratings.
Ordering details Type Order code Pkg Weight
qty (1 pce)
For R contactors type
IOR, NOR, JOR and FOR kg
0.470
1SBC387943F0302 63, 85 De-ion arc chute FPTN401938R0002 0.930
125, 170 De-ion arc chute FPTN401939R0002 1.360
200, 260 De-ion arc chute FPTN401940R0002 1.300
315, 400 (1), 420 Basic arc chute FPTN401936R0002 3.600
400 (2), 500, 550 De-ion arc chute FPTN401941R0002 2.570
800, 1000, 1250, 1500, 2000, 3150, 4000 De-ion arc chute FPTN410067R0002 2.570
1400, 2500 De-ion arc chute FPTN410067R0002 3.150
1700, 2100, 3200, 3800, 4500, 5100 De-ion arc chute FPTN410507R0001
(1) For NOR and JOR types, N.C. poles
(2) For IOR, NOR, JOR types, N.O. poles
Pressure springs, insulated supports, complete poles
and other spare parts
Please contact your local sales organisation (order code for R contactor needed).
ABB Spare parts | 2/3
