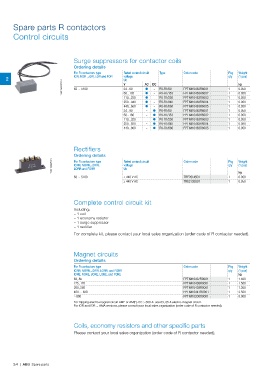

Spare parts R contactors
Control circuits

Surge suppressors for contactor coils

Ordering details

For R contactors type Rated control circuit Type Order code Pkg Weight
2 IOR, NOR , JOR, LOR and FOR voltage qty (1 pce)
Uc
1SBC104030F0014
V AC DC kg

63 ... 5100 24...60 ● – RV-R1/60 FPTN410463R6001 1 0.050

60...133 ● – RV-R1/133 FPTN410463R6002 1 0.050

110...250 ● – RV-R1/250 FPTN410463R6003 1 0.050

250...440 ● – RV-R1/440 FPTN410463R6004 1 0.050

440...660 ● – RV-R1/660 FPTN410463R6005 1 0.050

24...90 – ● RV-R1/60 FPTN410463R6001 1 0.050

60...180 – ● RV-R1/133 FPTN410463R6002 1 0.050

110...320 – ● RV-R1/250 FPTN410463R6003 1 0.050

250...550 – ● RV-R1/440 FPTN410463R6004 1 0.050

440...660 – ● RV-R1/660 FPTN410463R6005 1 0.050

1SBC104029F0014 Rectifiers Rated control circuit Order code Pkg Weight
voltage qty (1 pce)
Ordering details Uc TRE2614501
TRE2720801 kg
For R contactors type < 440 V AC 1 0.050
IORR, NORR, JORR, ≥ 440 V AC 1 0.050
LORR and FORR

63 ... 5100

Complete control circuit kit

Including:
– 1 coil
– 1 economy resistor
– 1 surge suppressor
– 1 rectifier

For complete kit, please contact your local sales organization (order code of R contactor needed).

Magnet circuits

Ordering details

For R contactors type Order code Pkg Weight
IORR, NORR, JORR, LORR, and FORR qty (1 pce)
IORE, NORE, JORE, LORE, and FORE FPTN410437R0001
FPTN410438R0001 kg
63, 85 FPTN410439R0001
125, 170 FPTN410441´R0001 1 1.500
200, 260 FPTN410200R0001 1 1.500
400 ... 630 1 1.500
≥ 800 1 2.500
1 8.000

For tripping electro-magnet circuit AME or AM(F)-CC > 800 A: use 63, 85 A electro-magnet circuit.
For IOR and IOR ... AMA versions, please consult your local sales organization (order code of R contactor needed).

Coils, economy resistors and other specific parts

Please contact your local sales organization (order code of R contactor needed).

2/4 | ABB Spare parts
