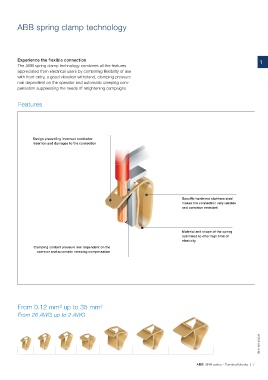

ABB spring clamp technology
Experience the flexible connection 1
The ABB spring clamp technology combines all the features
appreciated from electrical users by combining flexibility of use
with front entry, a good vibration withstand, clamping pressure
non dependent on the operator and automatic creeping com-
pensation suppressing the needs of retightening campaigns.
Features
Design preventing incorrect conductor
insertion and damages to the connection
Specific hardened stainless steel
makes the connection very reliable
and corrosion resistant
Material and shape of the spring
optimised to offer high limit of
elasticity
Clamping contact pressure non dependent on the
operator and automatic creeping compensation
From 0.12 mm² up to 35 mm²
From 26 AWG up to 2 AWG
1SNC162112S0201
ABB SNA series - Terminal blocks | 7
