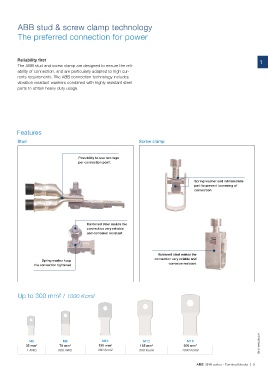

ABB stud & screw clamp technology
The preferred connection for power
Reliability first 1
The ABB stud and screw clamp are designed to ensure the reli-
ability of connection, and are particularly adapted to high cur-
rents requirements. The ABB connection technology includes
vibration resistant washers combined with highly resistant steel
parts to obtain heavy duty usage.
Features
Stud Screw clamp
Possibility to use two lugs
per connection point
Spring washer and intermediate
part to prevent loosening of
connection
Hardened steel makes the
connection very reliable
and corrosion resistant
Hardened steel makes the
Spring washer keep connection very reliable and
the connection tightened corrosion resistant
Up to 300 mm² /
1000 Kcmil
M6 M8 M10 M12 M16
35 mm 2 70 mm 2 120 mm 2 185 mm 2 300 mm 2 1SNC165002S0201
1 AWG 000 AWG 300 Kcmil 500 Kcmil 1000 Kcmil
