Page 14 - 1SNC160019C0203_SNA series - Terminal blocks
P. 14

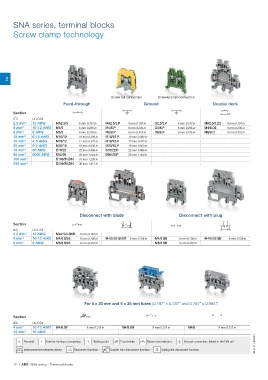

SNA series, terminal blocks
Screw clamp technology
2
Screw rail connection Screwless rail connection
Feed-through Ground Double deck
Section
IEC UL/CSA
2.5 mm² 12 AWG MA2.5/5 5 mm 0.197 in MA2.5/5.P 5 mm 0.197 in D2.5/5.P 5 mm 0.197 in MA2.5/5.D2 5 mm 0.197 in
4 mm² 10-12 AWG M4/6 6 mm 0.236 in M4/6.P 6 mm 0.236 in D4/6.P 6 mm 0.236 in M4/6.D2 6 mm 0.236 in
6 mm² 8 AWG M6/8 8 mm 0.315 in M6/8.P 8 mm 0.315 in D6/8.P 8 mm 0.315 in M6/8.D 8 mm 0.315 in
10 mm² 6-10 AWG M10/10 10 mm 0.394 in M10/10.P 10 mm 0.394 in
16 mm² 4-6 AWG M16/12 12 mm 0.472 in M16/12.P 12 mm 0.472 in
35 mm² 0-2 AWG M35/16 16 mm 0.630 in M35/16.P 16 mm 0.630 in
70 mm² 00 AWG D70/22 22 mm 0.866 in D70/22.P 22 mm 0.866 in
95 mm² 0000 AWG D95/26 26 mm 1.024 in D95/26.P 26 mm 1.024 in
150 mm² D150/31.D10 31 mm 1.220 in
240 mm² D240/36.D10 36 mm 1.417 in
Disconnect with blade Disconnect with plug
Section
IEC UL/CSA
2.5 mm² 12 AWG MA2.5/5.SNB.. 5 mm 0.197 in
4 mm² 10-12 AWG M4/6.SNB.. 6 mm 0.236 in M4/6.D2.SNBT 6 mm 0.236 in M4/6.SB 6 mm 0.236 in M4/6.D2.SB 6 mm 0.236 in
6 mm² 8 AWG M6/8.SNB 8 mm 0.315 in M6/8.SB 8 mm 0.315 in
For 5 x 20 mm and 5 x 25 mm fuses (0.197" x 0.787" and 0.197" x 0.984")
Section
IEC UL/CSA
4 mm² 10-12 AWG M4/8.SF 8 mm 0.315 in M4/8.SN 8 mm 0.315 in M4/8 8 mm 0.315 in
10 mm² 10 AWG
1SNC161115S0201
Terminal - Hole for testing or jumpering - Testing point - Fuse holder - Blown-fuse indicator - Ground connection, linked to the DIN rail
Interconnection between decks - Disconnect function - 1/4 Quarter turn disconnect function - Sliding link disconnect function
12 | ABB SNA series - Terminal blocks
