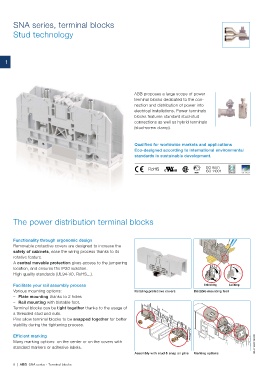

Page 10 - 1SNC160019C0203_SNA series - Terminal blocks
P. 10
SNA series, terminal blocks
Stud technology
1
ABB proposes a large scope of power
terminal blocks dedicated to the con-
nection and distribution of power into
electrical installations. Power terminals
blocks features standard stud-stud
connections as well as hybrid terminals
(stud-screw clamp).
Qualified for worldwide markets and applications
Eco-designed accor ding to international environmental
standards in sustainable development.
RoHS ISO 9001
ISO 14001
The power distribution terminal blocks
Functionality through ergonomic design
Removable protective covers are designed to increase the
safety of cabinets, ease the wiring process thanks to its
rotative feature.
A central movable protection gives access to the jumpering
location, and ensures the IP20 isolation.
High quality standards (UL94-V0, RoHS...).
Facilitate your rail assembly process Unlocking Locking
Various mounting options: Rotating protective covers Bistable mounting foot
– Plate mounting thanks to 2 holes
– Rail mounting with bistable foot.
Terminal blocks can be tight together thanks to the usage of
a threaded stud and nuts.
Pins allow terminal blocks to be snapped together for better
stability during the tightening process.
Efficient marking
Many marking options: on the center or on the covers with 1SNC165001S0201
standar d markers or adhesive labels.
Assembly with stud & snap on pins Marking options
