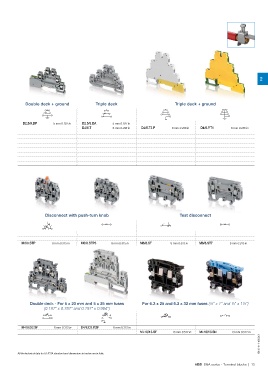

Page 15 - 1SNC160019C0203_SNA series - Terminal blocks

2

Double deck + ground Triple deck Triple deck + ground

D2.5/6.DP 5 mm 0.197 in D2.5/6.DA 5 mm 0.197 in
D4/6.T 6 mm 0.236 in D4/6.T3.P 6 mm 0.236 in D4/6.P.T1 6 mm 0.236 in

Disconnect with push-turn knob Test disconnect

1/4

M6/8.STP 8 mm 0.315 in M6/8.STP3 8 mm 0.315 in M6/8.ST 8 mm 0.315 in M6/8.ST7 8 mm 0.315 in

Double deck - For 5 x 20 mm and 5 x 25 mm fuses For 6.3 x 25 and 6.3 x 32 mm fuses (¼" x 1" and ¼" x 1¼")
(0.197" x 0.787" and 0.197" x 0.984")

M4/8.D2.SF 8 mm 0.315 in D4/8.D2.P.SF 8 mm 0.315 in
ML10/13.SF 13 mm 0.512 in ML10/13.SN 13 mm 0.512 in
1SNC161115S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.

ABB SNA series - Terminal blocks | 13
