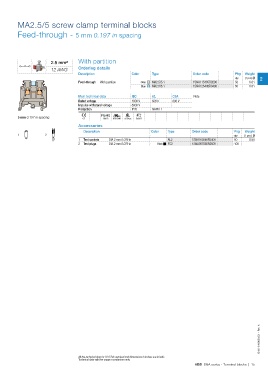

Page 17 - 1SNC160019C0203_SNA series - Terminal blocks

MA2.5/5 screw clamp terminal blocks

Feed-through - 5 mm 0.197 in spacing

2.5 mm² With partition
12 AWG Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g 2
Feed-through With partition Grey MA2.5/5.1 1SNA115485R0200 50 6.61
Blue MA2.5/5.1 1SNA125485R0400 50 6.61
Main technical data IEC UL CSA Nota
Rated voltage 1000 V 600 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
5 mm 0.197 in spacing CE RoHS USR CNR cCSAus Gost R
CUS
Accessories
Description Color Type Order code Pkg Weight
1 2 qty (1 pce) g
1 Test sockets DIA 2 mm 0.079 in AL2 1SNA163046R2400 50 0.90
2 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100

1SNC161096S0201 - Rev. A

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 15
