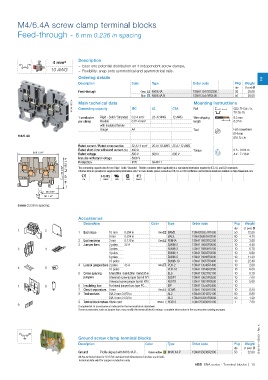

M4/6.4A screw clamp terminal blocks
Feed-through - 6 mm 0.236 in spacing
Description
4 mm²
– Ease one potential distribution on 4 independent screw clamps,
10 AWG – Flexibility: snap onto symmetrical and asymmetrical rails.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Grey M4/6.4A 1SNA115479R2300 50 20.00
Blue M4/6.4A.N 1SNA125479R2500 50 20.00
1SNC161012F0014 Main technical data IEC UL CSA Mounting instructions
Connecting capacity
Rail
G32, TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2-4 mm² 22-10 AWG 12 AWG Wire stripping 9.5 mm
per clamp Flexible 0.22-4 mm² length 0.37 in
with insulated ferrule
Gauge A4 Tool Flat screwdriver
Ø 4 mm
M4/6.4A Ø 0.157 in
Rated current / Rated cross section 32 A / 4 mm² 20 A / 10 AWG 25 A / 12 AWG
Rated short-time withstand current (1s) 480 A Torque 0.5 - 0.8 N.m
63.5 2.50"
Rated voltage 800 V 600 V 600 V 4.4 - 7.1 lb.in
55.5 2.18" Impulse withstand voltage 8000 V NEMA 1
Protection
IP20
53 2.09" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
48 1.89" CE RoHS USR CSA Gost R
25 0.98"
30 1.18"
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 3 mm 0.118 in Grey FEM4A 1SNA116629R2200 20 3.80
3 Jumper bars 2 poles 32 A BJMI6-2 1SNA176663R0000 10 4.40
3 4 3 poles BJMI6-3 1SNA176664R0100 10 6.70
4 poles BJMI6-4 1SNA176665R0200 10 8.90
5 poles BJMI6-5 1SNA176666R0300 10 11.20
10 poles BJMI6-10 1SNA176667R0400 10 22.40
4 Lateral jumper bars2 poles 35 A Grey PC6-2 1SNA113546R1400 10 2.00
5 6 10 poles PC6-10 1SNA113548R2600 10 8.00
5 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
jumpers Universal screw jumper bar kit N°I BJDP1 1SNA179623R0300 10 7.00
Universal screw jumper bar kit N°III BJDP3 1SNA179625R0500 10 5.00
7 8 6 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
7 Circuit separators 0 mm Grey SCM6 1SNA113003R1000 10 0.30
8 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
9 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
9 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161119S0201 - Rev. A
Ground screw clamp terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Profile aligned with M4/6.4A.P... Green-yellow M4/6.4A.P 1SNA195638R2300 50 22.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
