Page 24 - 1SNC160019C0203_SNA series - Terminal blocks

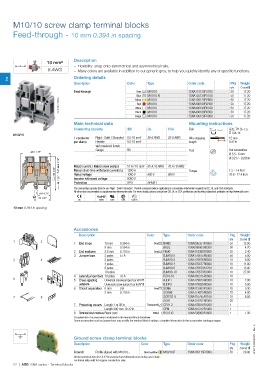

P. 24
M10/10 screw clamp terminal blocks
Feed-through - 10 mm 0.394 in spacing
Description
10 mm²
– Flexibility: snap onto symmetrical and asymmetrical rails,
6 AWG – Many colors are available in addition to our generic grey, to help you quickly identify any of specific functions.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Grey M10/10 1SNA115120R1700 50 17.20
Blue M10/10.N 1SNA125120R1100 50 17.20
1SNC161101F0014 White M10/10 1SNA400189R0400 50 17.20
17.20
1SNA105120R2600
50
M10/10
Yellow
Red
M10/10
1SNA400190R0100
50
17.20
Black
M10/10
50
17.20
1SNA195120R1000
Beige M10/10 1SNA400188R0300 50 17.20
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
M10/10
1 conductor Rigid - Solid / Stranded 0.5-16 mm² 20-6 AWG 22-6 AWG Wire stripping 12 mm
per clamp Flexible 0.5-10 mm² length 0.47 in
with insulated ferrule
Gauge B6 Tool Flat screwdriver
44.5 1.75"
Ø 5.5 - 6 mm
Ø 0.217 - 0.236 in
55.5 2.18" Rated current / Rated cross section 57 A / 10 mm² 65 A / 6 AWG 70 A / 6 AWG
53 2.09" Rated short-time withstand current (1s) 1200 A 600 V 600 V Torque 1.2 - 1.4 N.m
Rated voltage
1000 V
10.6 - 12.4 lb.in
48 1.89" Impulse withstand voltage 8000 V NEMA 1
IP20
Protection
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
18 0.71"
23 0.91"
CE RoHS USR CSA Gost R
10 mm 0.394 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA118368R1600 20 2.40
3 Jumper bars 2 poles 57 A BJMI10-2 1SNA176675R0400 50 5.00
3 4 3 poles BJMI10-3 1SNA176676R0500 10 8.00
4 poles BJMI10-4 1SNA176677R0600 10 11.00
5 poles BJMI10-5 1SNA176678R1700 10 13.00
10 poles BJMI10-10 1SNA176679R1000 10 27.00
4 Lateral jumper bars 10 poles 70 A PC10-10 1SNA163315R2600 10
5 6
5 Cross spacing Universal screw jumper bar kit N°I BJDP1 1SNA179623R0300 10 7.00
jumpers Universal screw jumper bar kit N°III BJDP3 1SNA179625R0500 10 5.00
6 Circuit separators 0 mm 0 in Grey SCM6 1SNA113003R1000 10 0.30
3 mm 0.118 in SCFM6 1SNA114825R0500 20 4.00
7 8 SCFCV1-2 1SNA116795R1100 10 8.00
SCF6 1SNA118707R0300 20
7 Protecting covers Length 1 m 39 in Transparent CPV1-2 1SNA176816R1200 1
Length 500 mm 19.70 in CPM 1SNA187312R1400 1
8 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161020S0201 - Rev. A
Ground screw clamp terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Profile aligned with M10/10... Green-yellow M10/10.P 1SNA165115R1000 50 29.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
22 | ABB SNA series - Terminal blocks
