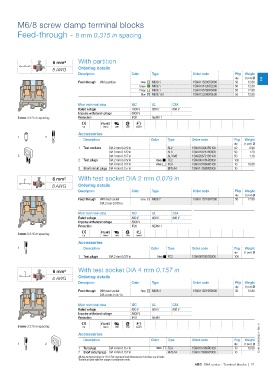

Page 23 - 1SNC160019C0203_SNA series - Terminal blocks
P. 23
M6/8 screw clamp terminal blocks
Feed-through - 8 mm 0.315 in spacing
6 mm² With partition
8 AWG Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g 2
Feed-through With partition Grey M6/8.1 1SNA115260R0300 50 12.80
Green M6/8.1 1SNA105128R2200 50 12.80
Beige M6/8.1 1SNA195260R0400 50 12.80
Blue M6/8.1.N 1SNA125260R0500 50 12.80
Main technical data IEC UL CSA
Rated voltage 1000 V 600 V 600 V
Impulse withstand voltage 8000 V
8 mm 0.315 in spacing Protection IP20 NEMA 1
CE RoHS USR CSA Gost R
Accessories
1 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
3 DIA 4 mm 0.157 in AL4-M3 1SNA206721R0100 50 1.10
2 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
3 Short circuit plugs DIA 4 mm 0.157 in BP8.A4 1SNA173888R2000 10
6 mm² With test socket DIA 2 mm 0.079 in
8 AWG Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through With test socket Grey M6/8.2 1SNA115218R2500 50 12.80
DIA 2 mm 0.079 in
Main technical data IEC UL CSA
Rated voltage 800 V 600 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
8 mm 0.315 in spacing CE RoHS USR CSA Gost R
Accessories
1 Description Color Type Order code Pkg Weight
qty (1 pce) g
1 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
6 mm² With test socket DIA 4 mm 0.157 in
8 AWG Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through With test socket Grey M6/8.4 1SNA115219R2600 50 12.80
DIA 4 mm 0.157 in
Main technical data IEC UL CSA
Rated voltage 800 V 600 V 600 V
Impulse withstand voltage 8000 V
Protection IP10 NEMA
8 mm 0.315 in spacing CE RoHS USR CSA Gost R
Accessories 1SNC161097S0201 - Rev. A
Description Color Type Order code Pkg Weight
1 2 qty (1 pce) g
1 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10 10.00
2 Short circuit plugs DIA 4 mm 0.157 in BP8.A4 1SNA173888R2000 10
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
