P. 22

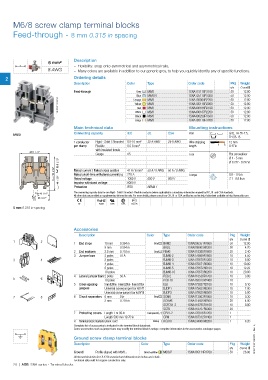

M6/8 screw clamp terminal blocks
Feed-through - 8 mm 0.315 in spacing
Description
6 mm²
– Flexibility: snap onto symmetrical and asymmetrical rails,
8 AWG – Many colors are available in addition to our generic grey, to help you quickly identify any of specific functions.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Grey M6/8 1SNA115118R1100 50 12.80
Blue M6/8.N 1SNA125118R1300 50 12.80
1SNC161102F0014 Yellow M6/8 1SNA105118R2000 50 12.80
12.80
M6/8
50
1SNA105004R2200
Orange
1SNA400186R2100
12.80
50
M6/8
Red
White
12.80
M6/8
50
1SNA400239R1500
Black M6/8 1SNA400187R2200 50 12.80
Beige M6/8 1SNA195118R1200 50 12.80
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
M6/8
TH 35-15
1 conductor Rigid - Solid / Stranded 0.5-10 mm² 22-8 AWG 24-8 AWG Wire stripping 12 mm
per clamp Flexible 0.5-6 mm² length 0.47 in
with insulated ferrule
44.5 1.75"
Gauge A5 Tool Flat screwdriver
Ø 4 - 5 mm
55.5 2.18" Ø 0.157 - 0.197 in
53 2.09" Rated current / Rated cross section 41 A / 6 mm² 50 A / 8 AWG 50 A / 8 AWG Torque 0.8 - 1 N.m
720 A
Rated short-time withstand current (1s)
48 1.89" Rated voltage 1000 V 600 V 600 V 7.1 - 8.9 lb.in
Impulse withstand voltage
8000 V
Protection IP20 NEMA 1
18 0.71" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
23 0.91"
CE RoHS USR CSA Gost R
8 mm 0.315 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA118368R1600 20 2.40
3 Jumper bars 2 poles 41 A BJMI8-2 1SNA176669R1600 10 4.50
3 4 3 poles BJMI8-3 1SNA176670R1300 10 6.00
4 poles BJMI8-4 1SNA176671R0000 10 10.00
5 poles BJMI8-5 1SNA176672R0100 10 12.22
10 poles BJMI8-10 1SNA176673R0200 10 20.00
4 Lateral jumper bars2 poles 50 A PC8-2 1SNA116538R1700 10 3.00
5 6
10 poles PC8-10 1SNA163313R2400 10
5 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
jumpers Universal screw jumper bar kit N°I BJDP1 1SNA179623R0300 10 7.00
Universal screw jumper bar kit N°III BJDP3 1SNA179625R0500 10 5.00
7 8 6 Circuit separators 0 mm 0 in Grey SCM6 1SNA113003R1000 10 0.30
3 mm 0.118 in SCFM6 1SNA114825R0500 20 4.00
SCFCV1-2 1SNA116795R1100 10 8.00
SCF6 1SNA118707R0300 20
7 Protecting covers Length 1 m 39 in Transparent CPV1-2 1SNA176816R1200 1
Length 500 mm 19.70 in CPM 1SNA187312R1400 1
8 Terminal block markersBlank card White RC810 1SNA234000R0200 1 8.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Ground screw clamp terminal blocks 1SNC161019S0201 - Rev. A
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Profile aligned with M6/8... Green-yellow M6/8.P 1SNA165114R1700 50 26.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
20 | ABB SNA series - Terminal blocks
