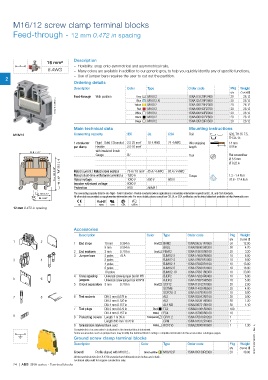

M16/12 screw clamp terminal blocks
Feed-through - 12 mm 0.472 in spacing
Description
16 mm²
– Flexibility: snap onto symmetrical and asymmetrical rails,
6 AWG – Many colors are available in addition to our generic grey, to help you quickly identify any of specific functions,
– Use of jumper bars requires the user to cut out the partition.
2
Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through With partition Grey M16/12 1SNA115129R1400 20 26.12
1SNC161108F0014 Yellow M16/12.N 1SNA125129R1600 20 26.12
Blue
20
26.12
M16/12
1SNA105129R2300
26.12
1SNA400192R2700
M16/12
20
Red
White
20
26.12
M16/12
1SNA400191R2600
Black M16/12 1SNA400193R2000 20 26.12
Beige M16/12 1SNA195129R1500 20 26.12
Main technical data Mounting instructions
M16/12 Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 2.5-25 mm² 18-4 AWG 14-4 AWG Wire stripping 14 mm
per clamp Flexible 2.5-16 mm² length 0.55 in
with insulated ferrule
44.5 1.75"
Gauge B7 Tool Flat screwdriver
55.5 2.18" Ø 5.5 mm
Ø 0.22 in
53 2.09" Rated current / Rated cross section 76 A / 16 mm² 85 A / 4 AWG 85 A / 4 AWG
1920 A
48 1.89" Rated short-time withstand current (1s) 1000 V 600 V 600 V Torque 1.2 - 1.4 N.m
Rated voltage
10.6 - 12.4 lb.in
8000 V
Impulse withstand voltage
Protection IP20 NEMA 1
19 0.75" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
24 0.94"
CE RoHS USR CSA Gost R
12 mm 0.472 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 3 mm 0.118 in Grey FEM12 1SNA118618R0100 20 3.20
3 Jumper bars 2 poles 76 A BJMI12-2 1SNA179626R0600 10 6.00
3 4 3 poles BJMI12-3 1SNA179628R1000 10 9.00
4 poles BJMI12-4 1SNA179629R1100 10 13.00
5 poles BJMI12-5 1SNA179630R1600 10 16.00
10 poles BJMI12-10 1SNA179631R0300 10 33.00
4 Cross spacing Universal screw jumper bar kit N°II BJDP2 1SNA179624R0400 10 6.00
5 6 jumpers Universal screw jumper bar kit N°III BJDP3 1SNA179625R0500 10 5.00
5 Circuit separators 3 mm 0.118 in Grey SCF12 1SNA113102R1000 20 2.00
SCFM6 1SNA114825R0500 20 4.00
SCFCV1-2 1SNA116795R1100 10 8.00
7 8 6 Test sockets DIA 2 mm 0.079 in AL2 1SNA163043R2100 50 0.90
DIA 3 mm 0.120 in AL3 1SNA163261R0000 50 1.20
DIA 4 mm 0.157 in AL4-M3 1SNA206721R0100 50 1.10
7 Test plugs DIA 2 mm 0.079 in Black FC2 1SNA007865R2600 100
DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10
9 8 Protecting covers Length 1 m 39 in Transparent CPV1-2 1SNA176816R1200 1
Length 500 mm 19.70 in CPM 1SNA187312R1400 1
9 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Ground screw clamp terminal blocks 1SNC161021S0201 - Rev. A
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Profile aligned with M16/12... Green-yellow M16/12.P 1SNA165130R2300 20 40.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
