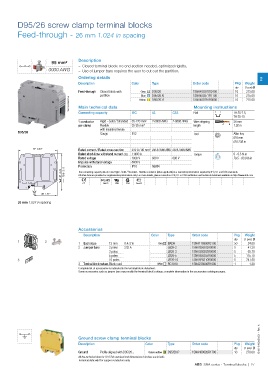

Page 29 - 1SNC160019C0203_SNA series - Terminal blocks
P. 29
D95/26 screw clamp terminal blocks
Feed-through - 26 mm 1.024 in spacing
Description
95 mm²
– Closed terminal block: no end section needed, optimized rigidity,
0000 AWG – Use of jumper bars requires the user to cut out the partition.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Closed block with Grey D95/26 1SNA400370R2400 10 215.00
partition Blue D95/26.N 1SNA400371R1100 10 215.00
1SNC161066F0014 Main technical data Yellow D95/26.YL 1SNA400791R0000 10 215.00
Mounting instructions
Connecting capacity IEC UL CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 35-120 mm² 2-0000 AWG 2-0000 AWG Wire stripping 26 mm
per clamp Flexible 35-95 mm² length 1.02 in
with insulated ferrule
D95/26 Gauge B12 Tool Allen key
Ø 6 mm
Ø 0.236 in
87 3.43" Rated current / Rated cross section 232 A / 95 mm² 230 A / 0000 AWG 230 A / 0000 AWG
Rated short-time withstand current (1s) 11400 A Torque 9 - 9.5 N.m
Rated voltage 1000 V 600 V 600 V 79.5 - 83.9 lb.in
Impulse withstand voltage 8000 V NEMA
Protection
IP10
87 3.43" 79.5 3.13" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CSA Gost R
46 1.81"
26 mm 1.024 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 Jumper bars 2 poles 232 A JB26-2 1SNK926302R0000 5 41.20
3 poles JB26-3 1SNK926303R0000 5 65.70
5 poles JB26-5 1SNK926305R0000 5 115.70
3 10 poles JB26-10 1SNK926310R0000 5 241.50
3 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161025S0201 - Rev. A
Ground screw clamp terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Profile aligned with D95/26... Green-yellow D95/26.P 1SNA400620R1700 10 278.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 27
