Page 27 - 1SNC160019C0203_SNA series - Terminal blocks

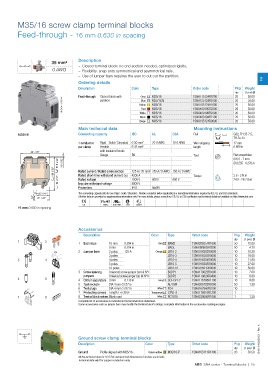

P. 27
M35/16 screw clamp terminal blocks
Feed-through - 16 mm 0.630 in spacing
Description
35 mm²
– Closed terminal block: no end section needed, optimized rigidity,
0 AWG – Flexibility: snap onto symmetrical and asymmetrical rails,
– Use of jumper bars requires the user to cut out the partition.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through
Grey
Closed block with
1SNA115124R0700
20
M35/16
50.00
1SNC161110F0014 partition Yellow M35/16.N 1SNA125124R0100 20 50.00
Blue
M35/16
20
1SNA105124R1600
50.00
50.00
1SNA400195R2200
20
M35/16
Red
White
1SNA400194R2100
M35/16
50.00
20
Black M35/16 1SNA400196R2300 20 50.00
Beige M35/16 1SNA195124R0000 20 50.00
Main technical data Mounting instructions
M35/16 Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 6-50 mm² 10-0 AWG 10-0 AWG Wire stripping 17 mm
per clamp Flexible 6-35 mm² length 0.669 in
with insulated ferrule
49 1.93"
Gauge B9 Tool Flat screwdriver
61.5 2.42" 1.5 0.05" Ø 6.5 - 7 mm
Ø 0.255 - 0.276 in
59 2.32" Rated current / Rated cross section 125 A / 35 mm² 150 A / 0 AWG 150 A / 0 AWG
4200 A
54 2.12" Rated short-time withstand current (1s) 1000 V 600 V 600 V Torque 2.8 - 3 N.m
24.9 - 26.7 lb.in
Rated voltage
8000 V
Impulse withstand voltage
Protection IP10 NEMA
22 0.87" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
27 1.06"
CE RoHS USR CNR CSA Gost R
16 mm 0.630 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 Jumper bars 2 poles 125 A Orange JB16-2 1SNK916302R0000 10 10.20
3 poles JB16-3 1SNK916303R0000 10 16.00
3 4 4 poles JB16-4 1SNK916304R0000 10 21.80
5 poles JB16-5 1SNK916305R0000 10 27.60
10 poles JB16-10 1SNK916310R0000 10 56.60
3 Cross spacing Universal screw jumper bar kit N°I BJDP1 1SNA179623R0300 10 7.00
jumpers Universal screw jumper bar kit N°II BJDP2 1SNA179624R0400 10 6.00
5 6 0.118 in
4 Circuit separators 3 mm Grey SCFCV1-2 1SNA116795R1100 10 8.00
5 Test sockets DIA 4 mm 0.157 in AL4-M4 1SNA206723R0300 50 1.30
6 Test plugs DIA 4 mm 0.157 in White FC4 1SNA167860R0100 10
7 Protecting covers Length 1 m 39 in Transparent CPV1-2 1SNA176816R1200 1
7 8 8 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161022S0201 - Rev. A
Ground screw clamp terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Profile aligned with M35/16... Green-yellow M35/16.P 1SNA165111R1400 20 50.50
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 25
