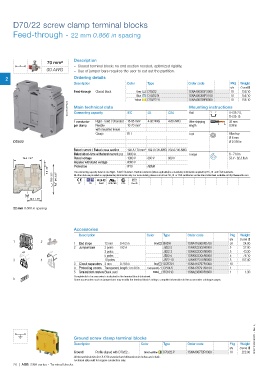

D70/22 screw clamp terminal blocks
Feed-through - 22 mm 0.866 in spacing
Description
70 mm²
– Closed terminal block: no end section needed, optimized rigidity,
00 AWG – Use of jumper bars requires the user to cut out the partition.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Closed block Grey D70/22 1SNA400305R1000 10 158.10
Blue D70/22.N 1SNA400306R1100 10 158.10
158.10
D70/22.YL
1SNA400789R0000
10
Yellow
1SNC161057F0014 Main technical data IEC UL CSA Mounting instructions
Connecting capacity
Rail
TH 35-7.5,
25 mm
1 conductor Rigid - Solid / Stranded 16-95 mm² 4-00 AWG 4-00 AWG Wire stripping TH 35-15
per clamp Flexible 16-70 mm² length 0.98 in
with insulated ferrule
Gauge B11 Tool Allen key
Ø 6 mm
D70/22 Ø 0.236 in
Rated current / Rated cross section 192 A / 70 mm² 159 A / 00 AWG 159 A / 00 AWG
Rated short-time withstand current (1s) 8400 A Torque 6 - 7 N.m
74.5 2.92" Rated voltage 1000 V 600 V 600 V 53.4 - 62.3 lb.in
Impulse withstand voltage 8000 V NEMA
1.3 .05" Protection IP10
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
76.5 3.01" 84 3.30" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CSA
CE
Gost R
CB
RoHS
USR CNR
39.5 1.55"
22 mm 0.866 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.472 in
1 End stops 12 mm Grey BADH 1SNA116900R2700 50 24.00
2 Jumper bars 2 poles 192 A JB22-2 1SNK922302R0000 5 27.00
3 poles JB22-3 1SNK922303R0000 5 43.30
5 poles JB22-5 1SNK922305R0000 5 76.10
3 4 10 poles JB22-10 1SNK922310R0000 5 157.40
3 Circuit separators 3 mm 0.118 in Grey SCFCV4 1SNA116797R1300 10
4 Protecting covers Transparent, length 1 m 39 in Transparent CPV4-5 1SNA176791R2100 1
5 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
5 Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161024S0201 - Rev. A
Ground screw clamp terminal blocks
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Profile aligned with D70/22... Green-yellow D70/22.P 1SNA400772R1300 10 222.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
