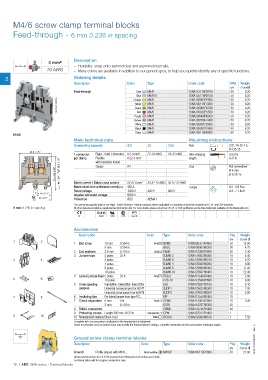

Page 18 - 1SNC160019C0203_SNA series - Terminal blocks
P. 18
M4/6 screw clamp terminal blocks
Feed-through - 6 mm 0.236 in spacing
Description
4 mm²
– Flexibility: snap onto symmetrical and asymmetrical rails,
10 AWG – Many colors are available in addition to our generic grey, to help you quickly identify any of specific functions.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Grey M4/6 1SNA115116R0700 50 8.20
Blue M4/6.N 1SNA125116R0100 50 8.20
1SNC161103F0014 Yellow M4/6 1SNA105116R1600 50 8.20
1SNA105002R2000
8.20
50
M4/6
Orange
M4/6
1SNA105001R2700
8.20
50
Green
Red
8.20
1SNA206404R0500
50
M4/6
Purple M4/6 1SNA105032R1500 50 8.20
Brown M4/6 1SNA105209R1400 50 8.20
White M4/6 1SNA105051R2000 50 8.20
Black M4/6 1SNA105031R1400 50 8.20
Beige M4/6 1SNA195116R0000 50 8.20
M4/6
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
44.5 1.75" 22-10 AWG 24-10 AWG
0.2-4 mm²
1 conductor Rigid - Solid / Stranded 0.22-4 mm² Wire stripping 9.5 mm
0.37 in
Flexible
55.5 2.18" per clamp with insulated ferrule A4 length Flat screwdriver
Gauge
Tool
53 2.09" Ø 4 mm
Ø 0.157 in
48 1.89" Rated current / Rated cross section 32 A / 4 mm² 30 A / 10 AWG 30 A / 10 AWG
Rated short-time withstand current (1s) 480 A Torque 0.5 - 0.8 N.m
Rated voltage 1000 V 600 V 600 V 4.4 - 7.1 lb.in
18 0.71"
Impulse withstand voltage 8000 V
23 0.91" Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
6 mm 0.236 in spacing All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA118368R1600 20 2.40
3 Jumper bars 2 poles 32 A BJMI6-2 1SNA176663R0000 10 4.40
3 4 3 poles BJMI6-3 1SNA176664R0100 10 6.70
4 poles BJMI6-4 1SNA176665R0200 10 8.90
5 poles BJMI6-5 1SNA176666R0300 10 11.20
10 poles BJMI6-10 1SNA176667R0400 10 22.40
4 Lateral jumper bars2 poles 35 A Grey PC6-2 1SNA113546R1400 10 2.00
5 6
10 poles PC6-10 1SNA113548R2600 10 8.00
5 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
jumpers Universal screw jumper bar kit N°I BJDP1 1SNA179623R0300 10 7.00
Universal screw jumper bar kit N°III BJDP3 1SNA179625R0500 10 5.00
7 8 6 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
7 Circuit separators 0 mm 0 in Grey SCM6 1SNA113003R1000 10 0.30
3 mm 0.118 in SCF6 1SNA118707R0300 20
8 Shield connectors CBM5 1SNA178745R1400 50
9 Protecting covers Length 500 mm 19.70 in Transparent CPM 1SNA187312R1400 1
9 10 10 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Ground screw clamp terminal blocks 1SNC161003S0201 - Rev. A
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Profile aligned with M4/6... Green-yellow M4/6.P 1SNA165113R1600 50 21.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
16 | ABB SNA series - Terminal blocks
Feed-through - 6 mm 0.236 in spacing
Description
4 mm²
– Flexibility: snap onto symmetrical and asymmetrical rails,
10 AWG – Many colors are available in addition to our generic grey, to help you quickly identify any of specific functions.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Grey M4/6 1SNA115116R0700 50 8.20
Blue M4/6.N 1SNA125116R0100 50 8.20
1SNC161103F0014 Yellow M4/6 1SNA105116R1600 50 8.20
1SNA105002R2000
8.20
50
M4/6
Orange
M4/6
1SNA105001R2700
8.20
50
Green
Red
8.20
1SNA206404R0500
50
M4/6
Purple M4/6 1SNA105032R1500 50 8.20
Brown M4/6 1SNA105209R1400 50 8.20
White M4/6 1SNA105051R2000 50 8.20
Black M4/6 1SNA105031R1400 50 8.20
Beige M4/6 1SNA195116R0000 50 8.20
M4/6
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
TH 35-15
44.5 1.75" 22-10 AWG 24-10 AWG
0.2-4 mm²
1 conductor Rigid - Solid / Stranded 0.22-4 mm² Wire stripping 9.5 mm
0.37 in
Flexible
55.5 2.18" per clamp with insulated ferrule A4 length Flat screwdriver
Gauge
Tool
53 2.09" Ø 4 mm
Ø 0.157 in
48 1.89" Rated current / Rated cross section 32 A / 4 mm² 30 A / 10 AWG 30 A / 10 AWG
Rated short-time withstand current (1s) 480 A Torque 0.5 - 0.8 N.m
Rated voltage 1000 V 600 V 600 V 4.4 - 7.1 lb.in
18 0.71"
Impulse withstand voltage 8000 V
23 0.91" Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
6 mm 0.236 in spacing All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CSA Gost R
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA118368R1600 20 2.40
3 Jumper bars 2 poles 32 A BJMI6-2 1SNA176663R0000 10 4.40
3 4 3 poles BJMI6-3 1SNA176664R0100 10 6.70
4 poles BJMI6-4 1SNA176665R0200 10 8.90
5 poles BJMI6-5 1SNA176666R0300 10 11.20
10 poles BJMI6-10 1SNA176667R0400 10 22.40
4 Lateral jumper bars2 poles 35 A Grey PC6-2 1SNA113546R1400 10 2.00
5 6
10 poles PC6-10 1SNA113548R2600 10 8.00
5 Cross spacing 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
jumpers Universal screw jumper bar kit N°I BJDP1 1SNA179623R0300 10 7.00
Universal screw jumper bar kit N°III BJDP3 1SNA179625R0500 10 5.00
7 8 6 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
7 Circuit separators 0 mm 0 in Grey SCM6 1SNA113003R1000 10 0.30
3 mm 0.118 in SCF6 1SNA118707R0300 20
8 Shield connectors CBM5 1SNA178745R1400 50
9 Protecting covers Length 500 mm 19.70 in Transparent CPM 1SNA187312R1400 1
9 10 10 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Ground screw clamp terminal blocks 1SNC161003S0201 - Rev. A
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Profile aligned with M4/6... Green-yellow M4/6.P 1SNA165113R1600 50 21.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
16 | ABB SNA series - Terminal blocks
