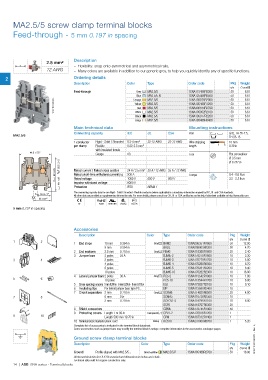

MA2.5/5 screw clamp terminal blocks
Feed-through - 5 mm 0.197 in spacing
Description
2.5 mm²
– Flexibility: snap onto symmetrical and asymmetrical rails,
12 AWG – Many colors are available in addition to our generic grey, to help you quickly identify any of specific functions.
2 Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Feed-through Grey MA2.5/5 1SNA115486R0300 50 6.61
Blue MA2.5/5.N 1SNA125486R0500 50 6.61
1SNC161116F0014 Yellow MA2.5/5 1SNA105486R1200 50 6.61
50
MA2.5/5
6.61
1SNA105075R2000
Orange
6.61
MA2.5/5
1SNA400184R2700
50
Red
White
6.61
MA2.5/5
1SNA105077R2200
50
Black MA2.5/5 1SNA105052R2100 50 6.61
Beige MA2.5/5 1SNA195486R0400 50 6.61
Main technical data Mounting instructions
Connecting capacity IEC UL CSA Rail G32, TH 35-7.5,
MA2.5/5
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2-4 mm² 22-12 AWG 22-12 AWG Wire stripping 10 mm
per clamp Flexible 0.22-2.5 mm² length 0.39 in
with insulated ferrule
44.5 1.75"
Gauge A3 Tool Flat screwdriver
Ø 3.5 mm
55.5 2.18" Ø 0.137 in
53 2.09" Rated current / Rated cross section 24 A / 2.5 mm² 30 A / 12 AWG 25 A / 12 AWG Torque 0.4 - 0.6 N.m
Rated short-time withstand current (1s)
300 A
48 1.89" Rated voltage 1000 V 600 V 600 V 3.5 - 5.3 lb.in
Impulse withstand voltage
8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
18 0.71"
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
23 0.91"
CUS
CE RoHS USR CNR cCSAus Gost R
5 mm 0.197 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 0.394 in
1 End stops 10 mm Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA118368R1600 20 2.40
3 Jumper bars 2 poles 24 A BJMI5-2 1SNA176278R1600 10 3.30
3 4 3 poles BJMI5-3 1SNA176279R1700 10 5.00
4 poles BJMI5-4 1SNA176280R0500 10 6.70
5 poles BJMI5-5 1SNA176281R2200 10 8.40
10 poles BJMI5-10 1SNA176282R2300 10 16.90
4 Lateral jumper bars2 poles 30 A Grey PC5-2 1SNA113542R1000 10 1.80
5 6
10 poles PC5-10 1SNA113544R1200 10 6.00
5 Cross spacing jumpers 5 mm 0.200 in - 6 mm 0.236 in - 8 mm 0.315 in EL6 1SNA173627R2100 10 0.10
6 Insulating tips For lateral jumper bars type PC... EIP 1SNA113550R2400 10
7 Circuit separators 3 mm 0.118 in Grey SCFM6 1SNA114825R0500 20 4.00
7 8 0 mm 0 in SCMA5 1SNA116728R2500 10
3 mm 0.118 in SCFCV1-2 1SNA116795R1100 10 8.00
SCF6 1SNA118707R0300 20
8 Shield connectors CBM5 1SNA178745R1400 50
9 Protecting covers Length 1 m 39 in Transparent CPV1-2 1SNA176816R1200 1
9 10 Length 500 mm 19.70 in CPM 1SNA187312R1400 1
10 Terminal block markersBlank card White RC510 1SNA231000R0700 1 5.20
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
Ground screw clamp terminal blocks 1SNC161001S0201 - Rev. A
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Profile aligned with MA2.5/5... Green-yellow MA2.5/5.P 1SNA165488R2700 50 18.00
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
