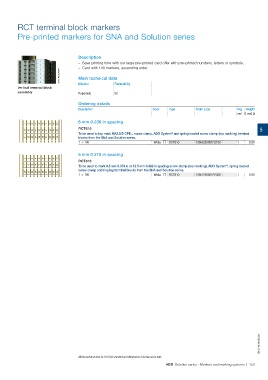

Page 155 - 1SNC160023C0204_Marking_systems_catalog_EN

RCT terminal block markers
Pre-printed markers for SNA and Solution series

1SNC160190F0014 Description
–– Save printing time with our large pre-printed card offer with pre-printed numbers, letters or symbols,
–– Card with 100 markers, ascending order.

Main technical data

Vertical terminal block Material Flammability
assembly
Polyamide V2

Ordering details Color Type Order code Pkg Weight
card (1 card) g
Description

6 mm 0.236 in spacing

RCT610 5

To be used to top mark MA2,5/5-CPE.., screw clamp, ADO System® and spring loaded screw clamp (top marking) terminal
blocks from the SNA and Solution series.

1 -> 100 White RCT610 1SNA236001R2100 1 6.00

8 mm 0.315 in spacing

RCT810

To be used to mark 9.5 mm 0.374 in or 12.5 mm 0.492 in spacing screw clamp (top marking), ADO System®, spring loaded

screw clamp and ring lug terminal blocks from the SNA and Solution series.

1 -> 100 White RCT810 1SNA236501R2300 1 8.00

1SNC160155S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
