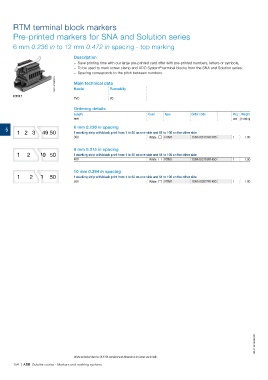

Page 156 - 1SNC160023C0204_Marking_systems_catalog_EN
P. 156
RTM terminal block markers
Pre-printed markers for SNA and Solution series
6 mm 0.236 in to 12 mm 0.472 in spacing - top marking
Description
–– Save printing time with our large pre-printed card offer with pre-printed numbers, letters or symbols,
–– To be used to mark screw clamp and ADO System® terminal blocks from the SNA and Solution series,
–– Spacing corresponds to the pitch between numbers.
1SNC160193F0014 Main technical data
Material Flammability
RTM7 PVC V0
Ordering details Color Type Order code Pkg Weight
card (1 card) g
Length
mm 1 1.00
5 1 2 3 49 50 6 mm 0.236 in spacing
1 marking strip with black print from 1 to 50 on one side and 51 to 100 on the other side
300 White RTM7 1SNA103115R1300
8 mm 0.315 in spacing
12 50 1 marking strip with black print from 1 to 50 on one side and 51 to 100 on the other side
400 White RTM7 1SNA103116R1400 1 1.00
12 50 10 mm 0.394 in spacing
1 marking strip with black print from 1 to 50 on one side and 51 to 100 on the other side
500 White RTM7 1SNA103922R1400 1 1.00
1SNC160156S0201
All the technical data for UL/CSA standard and dimensions in inches are in italic.
154 | ABB Solution series - Markers and marking systems
