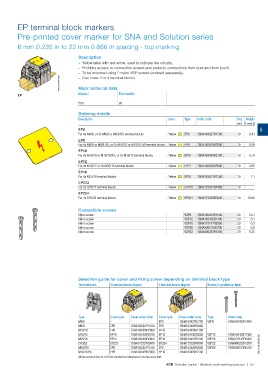

EP terminal block markers
Pre-printed cover marker for SNA and Solution series

6 mm 0.236 in to 22 mm 0.866 in spacing - top marking

1SNC700194F0000 Description

–– Yellow label with red arrow, used to indicate live circuits,
–– Prohibits access to connection screws and protects connections from dust and from touch,
–– To be mounted using 2 nylon VSP screws (ordered separately),
–– Can cover 3 or 4 terminal blocks.

Main technical data

EP Material Flammability

PVC V0

Ordering details Color Type Order code Pkg Weight
card (1 card) g
Description EP6 1SNA163427R1700
EP8 1SNA163428R2000 10 0.41
EP6 Yellow EP10 1SNA163429R2100 5
For 4x M4/6, or 3x M6/8 or M6/8.RS terminal blocks EP12 1SNA163430R2600
EP16 1SNA163431R1300
EP8 EP223 1SNA173327R2400 10 0.59
For 4x M6/8 or M6/8.RS, or 3x M10/10 or M10/10.RS terminal blocks Yellow EP224 1SNA173328R0500

EP10 Yellow 10 0.74
For 4x M10/10 or M10/10.RS, or 3x M16/12 terminal blocks

EP12 Yellow 10 0.85
For 4x M16/12 or 3x M35/16 terminal blocks

EP16 Yellow 10 1.1
For 4x M35/16 terminal blocks

EP223 Yellow 10
For 3x D70/22 terminal blocks

EP224 Yellow 10 10.00
For 4x D70/22 terminal blocks

Compatible screws VSP6 1SNA163433R1500 20 0.21
VSP12 1SNA163432R1400 20 0.1
Nylon screw VSP16 1SNA173147R2000 20 0.3
Nylon screw VSP68 1SNA206103R0700 20 0.6
Nylon screw VSP22 1SNA400252R1200 20 0.25
Nylon screw
Nylon screw

Selection guide for cover and fixing screw depending on terminal block type

Terminal block 3 terminal blocks aligned 4 terminal blocks aligned Screws for protection label

Type Cover type Cover order code Cover type Cover order code Type Order code 1SNC160158S0201
VSP6 1SNA163433R1500
M4/6 – – EP6 1SNA163427R1700
M6/8 EP6 1SNA163427R1700 EP8 1SNA163428R2000 VSP12 1SNA163432R1400
M10/10 EP8 1SNA163428R2000 EP10 1SNA163429R2100 VSP16 1SNA173147R2000
M16/12 EP10 1SNA163429R2100 EP12 1SNA163430R2600 VSP22 1SNA400252R1200
M35/16 EP12 1SNA163430R2600 EP16 1SNA163431R1300 VSP68 1SNA206103R0700
D70/22 EP223 1SNA173327R2400 EP224 1SNA173328R0500
M6/8.RS EP6 1SNA163427R1700 EP8 1SNA163428R2000
M10/10.RS EP8 1SNA163428R2000 EP10 1SNA163429R2100

All the technical data for UL/CSA standard and dimensions in inches are in italic.
