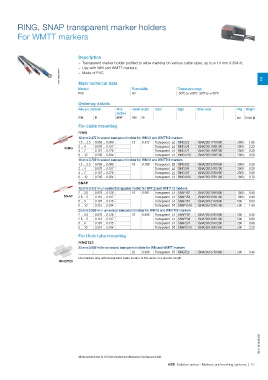

RING, SNAP transparent marker holders
For WMTT markers

1SNC160251F0014  Description

                 –– Transparent marker holder profiled to allow marking on various cable sizes, up to ø 10 mm 0.394 in,
                 –– Use with WM and WMTT markers,
                 –– Made of PVC.

                 Main technical data                                                                                                                                          2

                 Material                              Flammability                                  Temperature range
                 PVC                                   V0                                            -50°C to +80°C -58°F to +176°F

                 Ordering details             Wire     Holder length  Color                          Type      Order code            Pkg Weight
                                              section  mm in                                                                         pce (1 pce) g
                 Wire ext. diameter           mm²                                                              1SNA235117R1000
                                                                                                               1SNA235118R2100       3000 1.80
                 mm in                                                                                         1SNA235119R2200       3000 2.20
                                                                                                               1SNA235120R2700       2000 0.30
                 For cable mounting                                                                                                  2000 0.50
                                                                                                               1SNA235123R1600
                 RING                                                                                          1SNA235124R1700       3000 0.30
                                                                                                               1SNA235125R1000       3000 0.30
                 12 mm 0.472 in sealed transparent holder for WM12 and WMTT12 markers                          1SNA235126R1100       2000 0.50
                                                                                                                                     1000 0.70
                 1.5 ... 2.5 0.059 ... 0.098           12 0.472 Transparent                          RING122   1SNA235129R2400
                                                                                                               1SNA235130R2100       1000 0.40
     RING        2 ... 4  0.079 ... 0.157                             Transparent                    RING124   1SNA235131R1600       1000 0.40
    SNAP                                                                                                       1SNA235132R1700       500 0.50
RINGT23          4 ... 7  0.157 ... 0.276                             Transparent                    RING127                         500 1.40
                                                                                                               1SNA235133R1000
                 6 ... 10 0.236 ... 0.394                             Transparent                    RING1210  1SNA235134R1100       500 0.40
                                                                                                               1SNA235135R1200       500 0.60
                 18 mm 0.709 in sealed transparent holder for WM18 and WMTT18 markers                          1SNA235136R1300       200 0.90
                                                                                                                                     200 2.20
                 1.5 ... 2.5 0.059 ... 0.098           18 0.709 Transparent                          RING182   1SNA235137R1400
                                                                                                                                     200 0.40
                 2 ... 4  0.079 ... 0.157                             Transparent                    RING184

                 4 ... 7  0.157 ... 0.276                             Transparent                    RING187

                 6 ... 10 0.236 ... 0.394                             Transparent                    RING1810

                 SNAP

                 12 mm 0.472 in un-sealed transparent holder for WM12 and WMTT12 markers

                 2 ... 3.5 0.079 ... 0.138             15 0.591 Transparent                          SNAP152

                 2.8 ... 5 0.110 ... 0.197                            Transparent                    SNAP154

                 5 ... 8  0.197 ... 0.315                             Transparent                    SNAP157

                 8 ... 10 0.315 ... 0.394                             Transparent                    SNAP1510

                 23 mm 0.906 in in un-sealed transparent holder for WM18 and WMTT18 markers

                 2 ... 3.5 0.079 ... 0.138             23 0.906 Transparent                          SNAP232

                 2.8 ... 5 0.110 ... 0.197                            Transparent                    SNAP234

                 5 ... 8  0.197 ... 0.315                             Transparent                    SNAP237

                 8 ... 10 0.315 ... 0.394                             Transparent                    SNAP2310

                 For thick tube mounting

                 RINGT23

                 23 mm 0.906 in tie-on sealed transparent holder for WM and WMTT markers

                                                       23 0.906 Transparent                          RINGT23

                 Use holders only with designated cable marker of the same or a shorter length.

                                                                                                                                                             1SNC160194S0201

                 All the technical data for UL/CSA standard and dimensions in inches are in italic.
