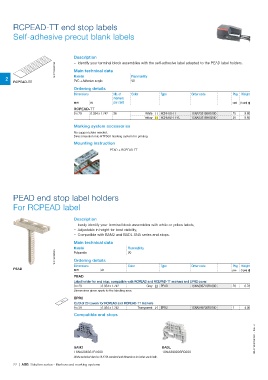

Page 24 - 1SNC160023C0204_Marking_systems_catalog_EN

RCPEAD-TT end stop labels
Self-adhesive precut blank labels

1SNC700302F0000 Description
–– Identify your terminal block assemblies with the self-adhesive label adapted to the PEAD label holders.

2 Main technical data Flammability
RCPEAD-TT V0
Material
PVC + Adhesive acrylic

Ordering details Nb. of Color Type Order code Pkg Weight
markers card (1 card) g
Dimensions per card White RCPEAD-TT 1SNA235158R0100
Yellow RCPEAD-TT-YL 1SNA235159R0200 25 9.80
mm in 36 25 9.60

R C PE A D -T T

9 x 29 0.354 x 1.142

Marking system accessories

No support plate needed.
Direct insertion into HTP500 marking system for printing.

Mounting instruction

PEAD + RCPEAD-TT

PEAD end stop label holders
For RCPEAD label

Description

–– Easily identify your terminal block assemblies with white or yellow labels,
–– Adjustable in height for best visibility,
–– Compatible with BAM2 and BADL SNA series end stops.

1SNC160058F0014 Main technical data Flammability
V0
Material
Polyamide

Ordering details

PEAD Dimensions Color Type Order code Pkg Weight
mm pce (1 pce) g
in
20 0.78
PEAD
1 4.00
Label holder for end stop, compatible with RCPEAD and RCEPAD-TT markers and EPR2 cover.

9 x 29 0.354 x 1.142 Grey PEAD 1SNA399719R1000

Dimensions given apply to the labelling area.

EPR2

Card of 20 covers for RCPEAD and RCPEAD-TT markers

9 x 29 0.354 x 1.142 Transparent EPR2 1SNA399726R0700

Compatible end stops

BAM2 BADL 1SNC160202S0201 - Rev. A
1SNA206351R1600 1SNA399903R0200

All the technical data for UL/CSA standard and dimensions in inches are in italic.
