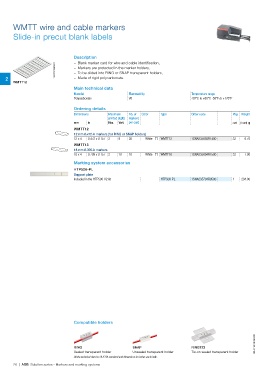

Page 28 - 1SNC160023C0204_Marking_systems_catalog_EN
P. 28
WMTT wire and cable markers
Slide-in precut blank labels
2 1SNC700183F0000 Description
WMTT12
–– Blank marker card for wire and cable identification,
–– Markers are protected in the marker holders,
–– To be slided into RING or SNAP transparent holders,
–– Made of rigid polycarbonate.
Main technical data Flammability Temperature range
V0 -50°C to +80°C -58°F to +176°F
Material
Polycarbonate
Ordering details
Dimensions Maximum Nb. of Color Type Order code Pkg Weight
mm in printed digits markers WMTT12 card (1 card) g
per card WMTT18
Hor. Vert. HTP500-PL
W M T T 12
12 mm 0.472 in markers (for RING or SNAP holders)
12 x 4 0.472 x 0.157 2 8 30 White 1SNA235093R1400 32 6.70
W M T T 18 10 18 White 1SNA235094R1500 32 7.00
18 mm 0.709 in markers
18 x 4 0.709 x 0.157 2
Marking system accessories 1SNA235704R0500 1 294.00
HTP500-PL
Support plate
Included in the HTP500-V2 kit
Compatible holders
RING SNAP RINGT23 1SNC160193S0201
Sealed transparent holder Unsealed transparent holder Tie-on sealed transparent holder
All the technical data for UL/CSA standard and dimensions in inches are in italic.
26 | ABB Solution series - Markers and marking systems
