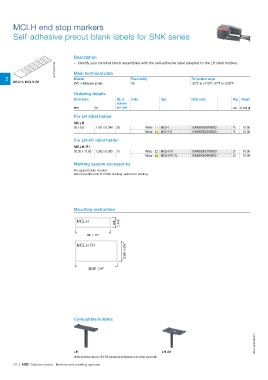

Page 22 - 1SNC160023C0204_Marking_systems_catalog_EN

MCLH end stop markers
Self-adhesive precut blank labels for SNK series

1SNC700301F0000 Description
–– Identify your terminal block assemblies with the self-adhesive label adapted to the LH label holders.

2 Main technical data Flammability Temperature range
MCLH, MCLH-R1 V0 -55°C to +110°C -67°F to +230°F
Material
PVC + Adhesive acrylic

Ordering details Nb. of Color Type Order code Pkg Weight
markers card (1 card) g
Dimensions per card MCLH 1SNK900630R0000
MCLH-YL 1SNK900633R0000 25 10.00
mm in 25 10.00
MCLH-R1 1SNK900631R0000
For LH label holder MCLH-R1-YL 1SNK900634R0000 25 10.00
25 10.00
MCLH 1.181 x 0.346 36 White
30 x 8.8 Yellow

For LH-R1 label holder White
Yellow
MCLH-R1
35.35 x 17.65 1.392 x 0.695 15

Marking system accessories

No support plate needed.
Direct insertion into HTP500 marking system for printing.

Mounting instruction 8.8
MCLH 0.346"

30 1.18" 17.65 0.695"

MCLH-R1

35.35 1.39"

Compatible holders

LH LH-R1 1SNC160200S0201
All the technical data for UL/CSA standard and dimensions in inches are in italic.
