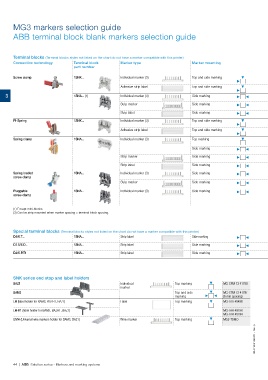

MG3 markers selection guide
ABB terminal block blank markers selection guide

Terminal blocks (Terminal blocks styles not listed on the chart do not have a marker compatible with this printer)

Connection technology Terminal block Marker type Marker mounting
part number
Top and side marking
Screw clamp 1SNK... Individual marker (3) Top and side marking
1SNA... (1) Adhesive strip label Side marking
3 Individual marker (3) Side marking
1SNK... Strip marker Side marking
PI-Spring 1SNA... Strip label Top and side marking
Spring clamp Individual marker (3) Top and side marking
Adhesive strip label Top marking
Individual marker (3) Side marking
Side marking
Spring loaded 1SNA... Strip marker Side marking
screw clamp 1SNA... Strip label Side marking
Individual marker (3) Side marking
Pluggable Strip marker Side marking
screw clamp Individual marker (3)

(1) Except mini-blocks.
(3) Can be strip mounted when marker spacing = terminal block spacing.

Special terminal blocks (Terminal blocks styles not listed on the chart do not have a marker compatible with this printer)

D4/6.T... 1SNA... Strip label Side marking

D2.5/6.D... 1SNA... Strip label Side marking

D4/6.P.T1 1SNA... Strip label Side marking

SNK series end stop and label holders Individual Top marking MG-CPM 13 41790
marker Top and side
BAZ1 Label marking MG-CPM 13 41791
BAM3 Wire marker Top marking (6 mm spacing)
LH (label holder for BAM3, BAZH1, BAZ1) MG-TAA 49498
LH-R1 (label holder for BAM3, BAZH1, BAZ1) Top marking
UMH (Universal wire markers holder for BAM3, BAZ1) MG-TAA 49198
MG-TAR 45194
MG2-TDMO

1SNC160213S0201 - Rev. A

44 | ABB Solution series - Markers and marking systems
