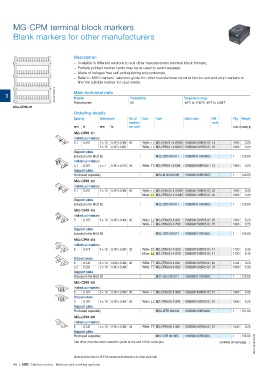

Page 50 - 1SNC160023C0204_Marking_systems_catalog_EN

MG-CPM terminal block markers
Blank markers for other manufacturers

Description

–– Available in different versions to suit other manufacturers terminal block formats,
–– Partially printed marker cards may be re-used to avoid wastage,
–– Made of halogen free self-extinguishing polycarbonate,
–– Refer to MG3 markers' selection guide for other manufacturer terminal blocks and end stop markers to

find the suitable marker for your needs.

3 1SNC160120F0014 Main technical data Flammability Temperature range
V0 -40°C to +140°C -40°F to +284°F
MG-CPM-01 Material
Polycarbonate

Ordering details

Spacing Dimensions Nb. of Color Type Order code SW Pkg Weight
markers code marker (1 marker) g
per card
mm in mm in

MG-CPM-01

Individual markers

5.1 0.201 5 x 10 0.197 x 0.394 56 White MG-CPM-01 41090N 1SNB041090R0510 14 1960 0.20
0.197 x 0.591 White MG-CPM-01 41091N 1SNB041091R0515 16 1960 0.20
5 x 15
0.197 x 0.276 56 1 120.00
Support plate MG2-QTB 991011 1SNB991011R0000
Included in the MG3 Kit 1960 0.20

Individual markers 1 149.00

5.1 0.201 5x7 White MG-CPM-01 41094 1SNB041094R0507 13

Support plate MG2-MTB 991008 1SNB991008R0000
Purchased separately

MG-CPM-02

Individual markers

5.1 0.201 5 x 10 0.197 x 0.394 56 White MG-CPM-02 41190N 1SNB041190R0510 22 1960 0.40
Yellow MG-CPM-02 41140N 1SNB041140R0510 22 1960 0.40

Support plate MG2-QTB 991011 1SNB991011R0000 1 120.00
Included in the MG3 Kit

MG-CPM-03

Individual markers

5 0.197 5 x 10 0.197 x 0.394 56 White MG-CPM-03 41291 1SNB041291R0510 25 1960 0.20
White MG-CPM-03 41293 1SNB041293R0510 25 1960 0.20

Support plate MG2-QTB 991011 1SNB991011R0000 1 120.00
Included in the MG3 Kit

MG-CPM-04

Individual markers

8 0.315 5 x 10 0.197 x 0.394 32 White MG-CPM-04 41390 1SNB041390R0510 41 1120 0.30
Yellow MG-CPM-04 41340 1SNB041340R0510 41 1120 0.40

Strip markers 1344 0.20
1680 0.30
6 0.236 6 x 10 0.236 x 0.394 48 White MG-CPM-04 41391 1SNB041391R0610 45
5.2 0.205 5 x 10 0.197 x 0.394 White MG-CPM-04 41395 1SNB041395R0510 31 1 120.00

Support plate

Included in the MG3 Kit MG2-QTB 991011 1SNB991011R0000

MG-CPM-05

Individual markers

5 0.197 5 x 10 0.197 x 0.394 56 White MG-CPM-05 41490 1SNB041490R0510 51 1960 0.40
0.197 x 0.394 56 White MG-CPM-05 41494 1SNB041494R0510 51 1960 0.20
Strip markers 5 x 10 1 151.00
5 0.197 MG2-WTB 991004 1SNB991004R0000

Support plate
Purchased separately

MG-CPM-06

Individual markers

6 0.236 5 x 10 0.197 x 0.394 44 White MG-CPM-06 41591 1SNB041591R0510 61 1540 0.20
MG2-STB 991005 1SNB991005R0000 1 158.00
Support plate 1SNC160167S0201
Purchased separately

See other manufacturers selection guide at the end of this catalogue Continue on next page →

All the technical data for UL/CSA standard and dimensions in inches are in italic.
