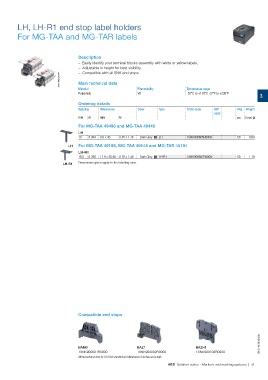

LH, LH-R1 end stop label holders
For MG-TAA and MG-TAR labels

1SNK160210F0014           Description

                          –– Easily identify your terminal blocks assembly with white or yellow labels,
                          –– Adjustable in height for best visibility,
                          –– Compatible with all SNK end stops.

                          Main technical data                            Flammability                         Temperature range                            3
                                                                         V0                                   -55°C to +110°C -67°F to +230°F
                          Material                                                                                                             Pkg Weight
                          Polyamide                                                                                                            pce (1 pce) g

                          Ordering details                                                                                                     50 0.60

                          Spacing  Dimensions                            Color         Type                   Order code       SW              50 1.10
                                                                                                                               code

                          mm in    mm          in

                          For MG-TAA 49498 and MG-TAA 49448

                          LH                   0.35 x 1.18 Dark Grey LH                                       1SNK900605R0000
                          10 0.394 8.8 x 30

                      LH  For MG-TAA 49198, MG-TAA 49148 and MG-TAR 45194
                 LH-R1
                          LH-R1                                          Dark Grey     LH-R1                  1SNK900607R0000
                          19.5 0.768 17.9 x 35.65 0.70 x 1.40

                          Dimensions given apply to the labelling area.

                          Compatible end stops

                          BAM3                                           BAZ1                                 BAZH1                                                   1SNC160180S0201
                          1SNK900001R0000                                1SNK900002R0000                      1SNK900102R0000

                          All the technical data for UL/CSA standard and dimensions in inches are in italic.
