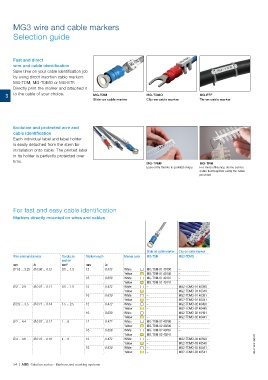

MG3 wire and cable markers
Selection guide

Fast and direct

wire and cable identification

Save time on your cable identification job

by using direct insertion cable markers

MG-TDM, MG-TDMO or MG-ETF.

Directly print the marker and attached it

3 to the cable of your choice. MG-TDM MG-TDMO MG-ETF
Slide-on cable marker Clip-on cable marker Tie-on cable marker

Evolutive and protected wire and MG-TPMF MG-TPM
cable identification Easy entry thanks to profiled shape For more efficiency, stems can be
Each individual label and label holder cable tied together using the holes
is easily detached from the stem for provided
installation onto cable. The printed label
in its holder is perfectly protected over
time.

For fast and easy cable identification

Markers directly mounted on wires and cables

Slide-on cable marker Clip-on cable marker

Wire external diameter Conductor Marker length Marker color MG-TDM MG2-TDMO
section mm in
mm in 12 0.472 White MG-TDM-01 49190 –
Ø 1.6 ... 3.25 Ø 0.06 ... 0.12 mm² 16 0.630 Yellow MG-TDM-01 40140 –
12 0.472 White MG-TDM-01 49191 –
0.5 ... 1.5 16 0.630 Yellow MG-TDM-01 40141 –
12 0.472 White – MG2-TDMO-01 40390
Ø 2 ... 2.9 Ø 0.07 ... 0.11 0.5 ... 1.5 16 0.630 Yellow – MG2-TDMO-01 40340
12 0.472 White – MG2-TDMO-01 40391
Ø 2.9 ... 3.5 Ø 0.11 ... 0.14 1.5 ... 2.5 16 0.630 Yellow – MG2-TDMO-01 40341
12 0.472 White – MG2-TDMO-02 40490
Ø 2 ... 4.4 Ø 0.07 ... 0.17 1 ... 6 16 0.630 Yellow – MG2-TDMO-02 40440
White – MG2-TDMO-02 40491
Ø 4 ... 4.6 Ø 0.16 ... 0.18 4 ... 6 Yellow – MG2-TDMO-02 40441 1SNC160214S0201
White MG-TDM-02 40290 –
Yellow MG-TDM-02 40240 –
White MG-TDM-02 40291 –
Yellow MG-TDM-02 40241 –
White – MG2-TDMO-03 40590
Yellow – MG2-TDMO-03 40540
White – MG2-TDMO-03 40591
Yellow – MG2-TDMO-03 40541
