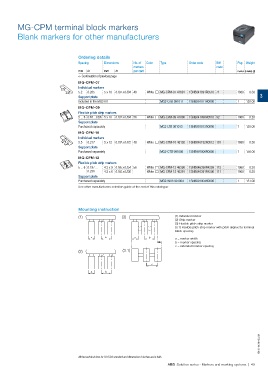

Page 51 - 1SNC160023C0204_Marking_systems_catalog_EN

MG-CPM terminal block markers
Blank markers for other manufacturers

Ordering details

Spacing Dimensions Nb. of Color Type Order code SW Pkg Weight
markers code marker (1 marker) g
per card
mm in mm in

← Continuation of previous page

MG-CPM-07

Individual markers

5.2 0.205 5 x 10 0.197 x 0.394 48 White MG-CPM-07 41691 1SNB041691R0510 71 1680 0.30 3
MG2-QTB 991011 1SNB991011R0000 1 120.00
Support plate
Included in the MG3 Kit 1SNB041890R0510 92
1SNB991013R0000
MG-CPM-09 White MG-CPM-09 41890 1960 0.20
MG2-LTB 991013 1SNB046192R0512 101 1 128.00
Flexible pitch strip markers 1SNB991006R0000
5 ... 6 0.197 ... 0.236 5 x 10 0.197 x 0.394 56
1SNB046390R4209 112
Support plate 1SNB046391R4206 111
Purchased separately 1SNB991004R0000

MG-CPM-10

Individual markers

5.5 0.217 5 x 12 0.197 x 0.472 48 White MG-CPM-10 46192 1680 0.30
MG2-CTB 991006 1 156.00
Support plate
Purchased separately

MG-CPM-12

Flexible pitch strip markers

5 ... 6 0.197 ... 4.2 x 9 0.165 x 0.354 56 White MG-CPM-12 46390 1960 0.20
0.236 4.2 x 6 0.165 x 0.236 White MG-CPM-12 46391 1960 0.20

Support plate MG2-WTB 991004 1 151.00
Purchased separately

See other manufacturers selection guide at the end of this catalogue

Mounting instruction (1) Individual marker
(1) (3) (2) Strip marker
(3) Flexible pitch strip marker
a b a b (3.1) Flexible pitch strip marker with pitch aligned to terminal
c block spacing
(2) (3.1)
a = marker width
b = marker spacing
c = extended marker spacing

ab

1SNC160167S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
