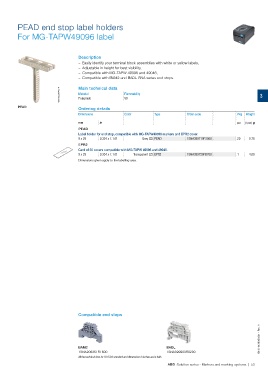

PEAD end stop label holders
For MG-TAPW49096 label

Description

–– Easily identify your terminal block assemblies with white or yellow labels,
–– Adjustable in height for best visibility,
–– Compatible with MG-TAPW 49096 and 49046,
–– Compatible with BAM2 and BADL SNA series end stops.

1SNC160058F0014 Main technical data Flammability 3
V0
Material Pkg Weight
Polyamide pce (1 pce) g
20 0.78
PEAD Ordering details 1 4.00

Dimensions Color Type Order code

mm in

PEAD

Label holder for end stop, compatible with MG-TAPW49096 markers and EPR2 cover.

9 x 29 0.354 x 1.142 Grey PEAD 1SNA399719R1000

EPR2

Card of 20 covers compatible with MG-TAPW 49096 and 49046.

9 x 29 0.354 x 1.142 Transparent EPR2 1SNA399726R0700

Dimensions given apply to the labelling area.

Compatible end stops

BAM2 BADL 1SNC160189S0201 - Rev. A
1SNA206351R1600 1SNA399903R0200

All the technical data for UL/CSA standard and dimensions in inches are in italic.

ABB Solution series - Markers and marking systems | 53
