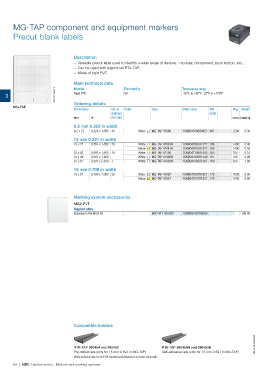

Page 70 - 1SNC160023C0204_Marking_systems_catalog_EN

MG-TAP component and equipment markers
Precut blank labels

Description

–– Versatile precut label used to identify a wide range of devices : modular, component, push button, etc.,
–– Can be used with legend rail RTA-TAP,
–– Made of rigid PVC.

3 1SNC160134F0014 Main technical data Flammability Temperature range
V0 -30°C to +80°C -22°F to +176°F
MG-TAP Material
Rigid PVC

Ordering details Nb. of Color Type Order code SW Pkg Weight
markers code marker (1 marker) g
Dimensions per card MG-TAP 47096
2200 0.30
mm in MG-TAP 47091N
MG-TAP 47041N 1400 0.40
8.2 mm 0.323 in width White MG-TAP 47198 1SNB047096R0827 807 1400 0.50
MG-TAP 47092N 700 0.10
8.2 x 27 0.323 x 1.063 44 White MG-TAP 47093N 1SNB047091R1527 166 700 0.90
Yellow 1SNB047041R1527 166 350 1.80
15 mm 0.591 in width White MG-TAP 47097 1SNB047198R1543 353
White MG-TAP 47047 1SNB047092R1549 167 1000 0.60
15 x 27 0.591 x 1.063 28 White 1SNB047093R1567 168 1000 0.60

15 x 43 0.591 x 1.693 14 White 1SNB047097R1827 178
15 x 49 0.591 x 1.929 Yellow 1SNB047047R1827 178
15 x 67 0.591 x 2.638 7

18 mm 0.709 in width

18 x 27 0.709 x 1.063 20

Marking system accessories MG2-PLT 991002 1SNB991002R0000 1 148.50

MG2-PLT
Support plate
Included in the MG3 Kit

Compatible holders

RTR-TAP 990454 and 990452 RTA-TAP 990455N and 990453N 1SNC160176S0201
Pre-drilled rails (only for 15 mm 0.591 in MG-TAP) Self-adhesive rails (only for 15 mm 0.591 in MG-TAP)

All the technical data for UL/CSA standard and dimensions in inches are in italic.
