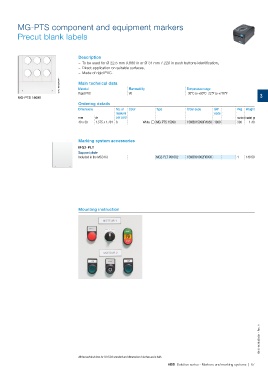

MG-PTS component and equipment markers
Precut blank labels
Description
–– To be used for Ø 22.5 mm 0.886 in or Ø 31 mm 1.220 in push buttons identification,
–– Direct application on suitable surfaces,
–– Made of rigid PVC.
1SNC160136F0014 Main technical data Flammability Temperature range 3
V0 -30°C to +80°C -22°F to +176°F
Material Pkg Weight
Rigid PVC marker (1 marker) g
300 1.40
MG-PTS 15090
Ordering details Nb. of Color Type Order code SW
markers White MG-PTS 15090 code
Dimensions per card
mm in 6 1SNB015090R4030 1000
40 x 30 1.575 x 1.181
Marking system accessories MG2-PLT 991002 1SNB991002R0000 1 148.50
MG2-PLT
Support plate
Included in the MG3 Kit
Mounting instruction
1SNC160184S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
