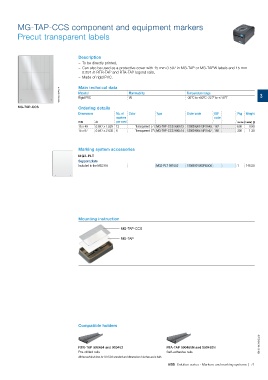

MG-TAP-CCS component and equipment markers
Precut transparent labels

Description

–– To be directly printed,
–– Can also be used as a protective cover with 15 mm 0.591 in MG-TAP or MG-TAPW labels and 15 mm

0.591 in RTR-TAP and RTA-TAP legend rails,
–– Made of rigid PVC.

1SNC160135F0014 Main technical data Flammability Temperature range 3
V0 -30°C to +80°C -22°F to +176°F
Material
Rigid PVC

MG-TAP-CCS Ordering details

Dimensions Nb. of Color Type Order code SW Pkg Weight
markers
per card code marker (1 marker) g
600 0.90
mm in 12 Transparent MG-TAP-CCS 990513 1SNB990513R1549 167 300 1.30
6 Transparent MG-TAP-CCS 990514 1SNB990514R1567 168
15 x 49 0.591 x 1.929
15 x 67 0.591 x 2.638

Marking system accessories MG2-PLT 991002 1SNB991002R0000 1 148.50

MG2-PLT
Support plate
Included in the MG3 Kit

Mounting instruction

MG-TAP-CCS
MG-TAP

Compatible holders

RTR-TAP 990454 and 990452 RTA-TAP 990455N and 990453N 1SNC160178S0201
Pre-drilled rails Self-adhesive rails

All the technical data for UL/CSA standard and dimensions in inches are in italic.
