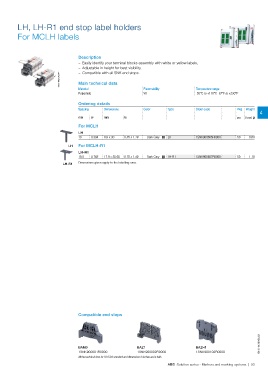

LH, LH-R1 end stop label holders
For MCLH labels
1SNK160210F0014 Description
–– Easily identify your terminal blocks assembly with white or yellow labels,
–– Adjustable in height for best visibility,
–– Compatible with all SNK end stops.
Main technical data Flammability Temperature range
V0 -55°C to +110°C -67°F to +230°F
Material
Polyamide
Ordering details
Spacing Dimensions Color Type Order code Pkg Weight 4
pce (1 pce) g
mm in mm in Dark Grey LH
Dark Grey LH-R1
For MCLH 8.8 x 30 0.35 x 1.18 1SNK900605R0000 50 0.60
LH
10 0.394
LH For MCLH-R1 1SNK900607R0000 50 1.10
LH-R1
LH-R1
19.5 0.768 17.9 x 35.65 0.70 x 1.40
Dimensions given apply to the labelling area.
Compatible end stops
BAM3 BAZ1 BAZH1 1SNC160129S0201
1SNK900001R0000 1SNK900002R0000 1SNK900102R0000
All the technical data for UL/CSA standard and dimensions in inches are in italic.
