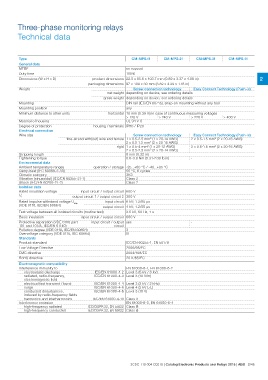

P. 113
Three-phase monitoring relays
Technical data
Type CM-MPS.11 CM-MPS.21 CM-MPS.31 CM-MPS.41
General data on request
MTBF
Duty time 100%
Dimensions (W x H x D) product dimensions 22.5 x 85.6 x 103.7 mm (0.89 x 3.37 x 4.08 in) 2
packaging dimensions 97 x 109 x 30 mm (3.82 x 4.29 x 1.18 in)
Weight Screw connection technology Easy Connect Technology (Push-in)
net weight depending on device, see ordering details
gross weight depending on device, see ordering details
Mounting DIN rail (IEC/EN 60715), snap-on mounting without any tool
Mounting position any
Minimum distance to other units horizontal 10 mm (0.39 in) in case of continuous measuring voltages
Material of housing
> 120 V > 240 V > 220 V > 400 V
UL 94 V-0
Degree of protection housing / terminals IP50 / IP20
Electrical connection
Wire size Screw connection technology Easy Connect Technology (Push-in)
2 x 0.5-1.5 mm2 (2 x 20-16 AWG)
fine-strand with(out) wire end ferrule 1 x 0.5-2.5 mm2 (1 x 20-14 AWG) 2 x 0.5-1.5 mm2 (2 x 20-16 AWG)
2 x 0.5-1.5 mm2 (2 x 20-16 AWG)
-
rigid 1 x 0.5-4 mm2 (1 x 20-12 AWG)
2 x 0.5-2.5 mm2 (2 x 20-14 AWG)
Stripping length 8 mm (0.32 in)
Tightening torque 0.6-0.8 Nm (5.31-7.08 lb.in)
Environmental data
Ambient temperature ranges operation / storage -25...+60 °C / -40...+85 °C
Damp heat (IEC 60068-2-30) 55 °C, 6 cycles
Climatic category 3K3
Vibration (sinusoidal) (IEC/EN 60255-21-1) Class 2
Shock (IEC/EN 60255-21-2) Class 2
Isolation data input circuit / output circuit 600 V
output circuit 1 / output circuit 2 300 V
Rated insulation voltage
Ui
Rated impulse withstand voltage Uimp input circuit 6 kV; 1.2/50 μs
(VDE 0110, IEC/EN 60664) output circuit 4 kV; 1.2/50 μs
Test voltage between all isolated circuits (routine test) 2.5 kV, 50 Hz, 1 s
Basic insulation input circuit / output circuit 600 V
Protective separation (VDE 0106 part input circuit / output yes -
101 and 101/A, IEC/EN 61140) circuit
Pollution degree (VDE 0110, IEC/EN 60664) 3
Overvoltage category (VDE 0110, IEC 60664) III
Standards IEC/EN 60255-1, EN 50178
Product standard
Low Voltage Directive 2006/95/EC
EMC directive 2004/108/EC
RoHS directive 2011/65/EC
Electromagnetic compatibility EN 61000-6-1, EN 61000-6-2
IEC/EN 61000-4-2 Level 3 (6 kV / 8 kV)
Interference immunity to IEC/EN 61000-4-3 Level 3 (10 V/m)
electrostatic discharge
radiated, radio-frequency, IEC/EN 61000-4-4 Level 3 (2 kV / 2 kHz)
electromagnetic field IEC/EN 61000-4-5 Level 4 (2 kV L-L)
IEC/EN 61000-4-6 Level 3 (10 V)
electrical fast transient / burst
surge IEC/EN 61000-4-13 Class 3
conducted disturbances, EN 61000-6-3, EN 61000-6-4
induced by radio-frequency fields
IEC/CISPR 22, EN 55022 Class B
harmonics and interharmonics IEC/CISPR 22, EN 55022 Class B
Interference emission
high-frequency radiated
high-frequency conducted
2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 2/46
