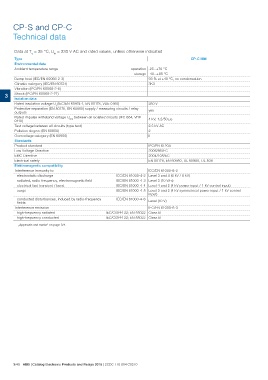

CP-S and CP-C
Technical data

Data at Ta = 25 °C, Uin = 230 V AC and rated values, unless otherwise indicated

Type CP-C MM

Environmental data

Ambient temperature range operation -25...+70 °C

storage -40...+85 °C

Damp heat (IEC/EN 60068-2-3) 93 % at +40 °C, no condensation

Climatic category (IEC/EN 60721) 3K3

Vibration (IEC/EN 60068-2-6)

3 Shock (IEC/EN 60068-2-27)
Isolation data

Rated insulation voltage Ui (IEC/EN 60974-1, EN 50178, VDE 0160) 250 V
yes
Protective separation (EN 50178, EN 60950) supply / measuring circuits / relay
outputs

Rated impulse withstand voltage Uimp between all isolated circuits (IEC 664, VDE 4 kV; 1.2/50 μs
0110)

Test voltage between all circuits (type test) 2.5 kV AC

Pollution degree (EN 60950) 2

Overvoltage category (EN 60950) II

Standards

Product standard IEC/EN 61204

Low Voltage Directive 2006/95/EC

EMC Directive 2004/108/EC

Electrical safety EN 50178, EN 60950, UL 60950, UL 508

Elektromagnetic compatibility

Interference immunity to IEC/EN 61000-6-2

electrostatic discharge IEC/EN 61000-4-2 Level 3 and 4 (6 kV / 8 kV)

radiated, radio-frequency, electromagnetic field IEC/EN 61000-4-3 Level 3 (10 V/m)

electrical fast transient / burst IEC/EN 61000-4-4 Level 4 and 2 (4 kV power input / 1 kV control input)

surge IEC/EN 61000-4-5 Level 3 and 2 (4 kV symmetrical power input / 1 kV control
input)

conducted disturbances, induced by radio-frequency IEC/EN 61000-4-6 Level (10 V)
fields

Interference emission IEC/EN 61000-6-3

high-frequency radiated IEC/CISPR 22; EN 55022 Class B

high-frequency conducted IEC/CISPR 22; EN 55022 Class B
